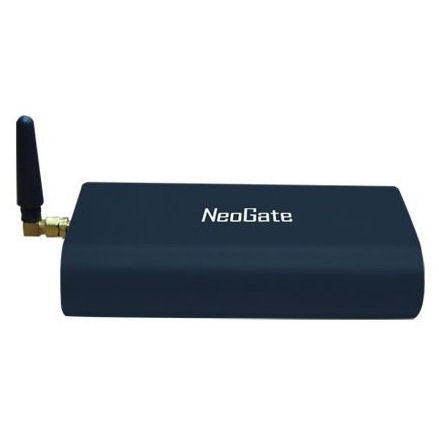

Yeastar NeoGate TG100 GSM Gateway

Key Features:

• Mfr. Part #: TG100
• Number of GSM channels (Max): 1
• Network type: 850/900/1800/1900MHz
• Protocol: SIP (RFC3261),IAX2
• Transport Protocol: UDP,TCP,TLS,SRTP
• DTMF: RFC2833, SIP INFO, In-band
• Codec: G.711A/U law, G.722, G.723.1, G.726, G.729a.
• Echo Cancellation: ITU-T G.168 LEC
• LAN: 1 (10/100Mbps)
• Network: Static IP, DHCP Client, Firewall, VLAN, DDNS, QoS, OpenVPN
• NAT Traversal: Static NAT, STUN
• Size: 110x70x24mm
• Power Supply: AC 100~240V/50~60Hz (DC 12V, 1A)
• Operation Range: 0° to 40°C, 32° to 104° F
• Storage Range: -20° to 65°C, 4° to 149° F
• Humidity: 10-90% non-condensing
• SIP Server and SIP Trunk supported
• SIP Peer Mode supported
• Calling Type: VoIP to GSM, GSM to VoIP
• GSM Ports Group Manage, VoIP Trunk Group
• Incoming /Outgoing Routing rules
• SMS Sending and Receiving
• Send Bulk SMS
• Gain Adjustment
• USSD
• PIN Modify
• Carrier Selection: Auto/Manual
• Balance Alarm, Caller ID/CLIR, Black List, Hotline, Call Duration Limitation, Call Transfer, Call Back, Call Status Display, Call Detail Record (CDR), Call Progress Tone Generation, Call Duration Limitation for SIM Card/Single Call
• LCR (Least Cost Routing)
• Top voice quality (EFR super sound)
• SIP Response Code Switch
• Open API for SMS and USSD
• Real Open API Protocol (Based on Asterisk)
• IP Blacklist
• Network Attack Alert
• System Logs
