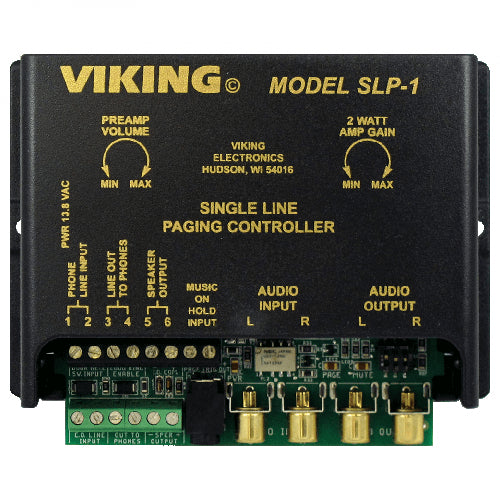

Viking SLP-1 Single-Line Paging Controller

The SLP-1 Single Line Paging Controller will allow you to page family members or co-workers from any phone in your home or small office. The pages can be heard over the same speakers that are installed for music distribution. The SLP-1 connects in series with a single existing phone line. The unit has a built-in 2 watt amplifier, pre-amp output, music on hold input, intercom features, and selectable loud ringing. The SLP-1 provides an input for a lighted doorbell switch, allowing a door chime to be heard over existing speakers. Page from several different phone lines by connecting multiple units.

Applications:

• Whole house paging from an existing phone line
• Add paging, intercom, and music on hold features for small businesses
• Loud ringing / night bell
• Provide unique front and back door chimes when used with a C-1000B or C-2000

Specifications:

• Power: 120V AC/13.8V AC 1.25A, UL listed adapter provided
• Dimensions: 133mm x 89mm x 44mm (5.25" x 3.5" x 1.75
• Shipping Weight: 1.36 kg (3 lbs)
• Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity
• Paging Amplifier Output: 2 watts - powers up to (3) 8 ohm or(16) 45 ohm speakers
• Sound Pressure: 110 dB @ 1 meter (loud electronic warble)
• REN: 0.5A
• Max Speaker Output Wire Run: 91m (300 ft) max, 18 AWG
• Max Doorbell Switch Wire Run: 305m (1000 ft) max, 24 AWG
• Max Load on Page Trigger Output: 1K Ohm
• Talk Battery: 36V DC
• Connections: (1) 6-position and (1) 8-position screw terminal blocks, (1) 3.5mm (1/8") jack, (4) RCA jacks

More Information

• Whole house/small business paging from existing phones
• Built-in two-watt mono paging amplifier with gain control
• Phone to phone intercom
• Page from several different phone lines by connecting multiple units
• Music on hold
• Caller on hold
• Can provide background music from an external source
• Background music mute (automatic during paging or touch tone selectable while you are on a call)
• Selectable loud ringing (electronic warble over speakers)
• Unique front and back door chimes when used with a C-1000B or C-2000 doorbox controllers
• Switch selectable On-Hold alarm tones
• Stereo pre-amp input and line level output for use with receivers and high wattage amplifiers
• Simple control commands - no touch tone programming
• Page trigger output (12V signal for enabling paging source input on multi-source amps)
• Pre-amp volume control
• Bypass code - ignores all touch tones on next off-hook allowing you to steer through auto attendants, etc.
• Comes complete with power supply
• 1 Year Warranty, Made in USA
