Viking
|
VIKLV1K

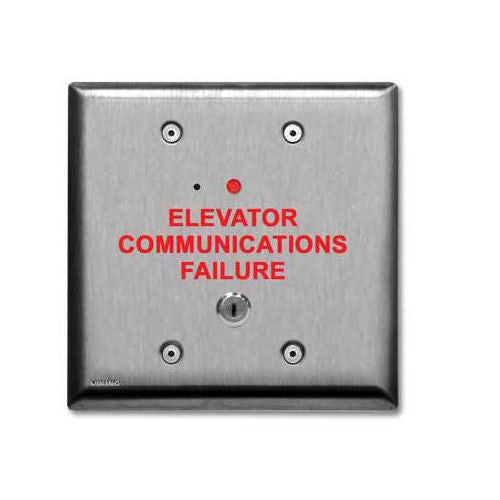

Viking LV-1K Line Verification Panel with Key
Key Features:
- Mnfr. Part #: LV-1K
- Single Viking 1600A Series elevator emergency phones (DOD# 215)
- Add to the Viking model LC-6 (DOD# 245) for use with banks of two to six 1600A Series elevator emergency phones
- Complies with ASME A17.1 Elevator Code
- Compatible with Viking 1600A Series phones
- Compatible with Viking Model LC-6 Six Port Line Concentrator
- Volume adjustable audible signaling
- Mounts in standard double gang electrical box
- Power: 120V AC/ 12V DC UL Listed adapter provided
- Dimensions: 124 mm x 124 mm x 33 mm (4.9" x 4.9" x 1.3")
- Environmental: 0 C to 32 C (32 F to 90 F) with 5% to 95% noncondensing humidity
- Maximum Power Supply Wire Length: 244m (500 ft) with #24 gauge wire
- Connections: (6) color-coded wires with (6) gel-filled butt connectors
