Viking
|
VIKK2000DVA

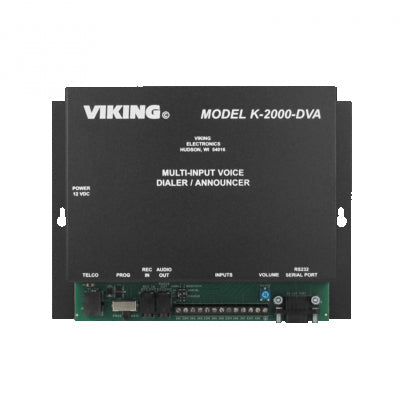

Viking K-2000-DVA Multi-Input Voice Dialer With Digital Announcer
Multi-input Voice Dialer/Announcer Fully programmable multi-input, multi-number auto dialer and digital announcer, designed for emergency and non-emergency message notification. Has 8 dry contact inputs which when tripped will sequentially dial up to 8 different phone numbers and play a recorded message corresponding to the input tripped. Stores up to seven 16 digit phone numbers & one 32 digit phone number per input. This unit is capable of local or remote recording of up to 8 different messages (one per input) with one minute of total record time.
Applications:
- Alarm Dialer
- Security/burglar/fire alarm notification
- System alarm or equipment malfunction notification
- Environmental warning notification
- Automatic telephone messaging paging
- Store Caster
- Provide assistance or promotional announcements in department stores, grocery stores, hardware stores, gas stations, etc. "Customer assistance needed in aisle 13..."
Features:
- Non-volatile memory (no batteries required)
- Stores up to (7) 16-digit numbers and (1) 32 digit phone number per input (64 total)
- 60 total seconds of record time
- Programmable message repeat counter
- Programmable lap counter for dialing groups of phone numbers
- Eight programmable normally open/closed inputs
- Programmable ring delay for remote programming and alarm polling
- Pager compatible
- Remote security and access codes
- Programmable store caster mode
- CPC break detection
- Local or remote programming and recording
- RS-232 port for programming via a P.C.
- Compatible with the RC-2A and RC-3 remote DTMF controllers
- One year warranty
- Made in the USA
Specifications:
- Power: 120V AC/12V DC 500 mA, UL listed adapter provided
- Dimensions: 187mm x 127mm x 45mm (7.37" x 5.0" x 1.75")
- Shipping Weight: .68 Kg (1.5 lbs)
- Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% noncondensing humidity
- Talk Battery: 13V DC
- Touch Tone Dialing: 120 ms on/off
- CPC Detection Time: 320 ms minimum
- Message Record Time: 60 seconds
- Sampling Rate: 64 K (equivalent)
- Momentary Trigger Input: 100 ms minimum normally open/normally closed
- Connections: (2) RJ11 jacks for 600-ohm audio output and telephone line/phone, (1) 9 pin RS-232, (1) 12 position screw terminal block for dry contact trigger inputs
