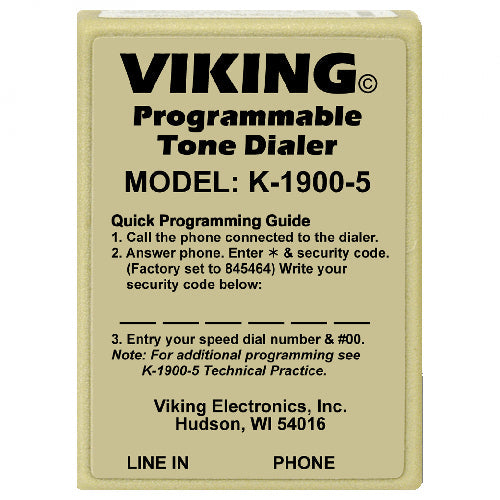

Viking K-1900-5 Programmable Tone Dialer

Viking Hot Dialer VK-K-1900-5 provides 1 to 32 digit Touch Tone dialing on C.O. lines or analog PABX/KSU stations, and 1 and 4 second pauses as needed to use behind a PABX, access a pager from an alarm contact, etc. The K-1900-5 also blocks hand-held dialers and "hook-switch" or pulse dialing.

Applications:

• Security and emergency phones
• Interactive point of sale displays
• Apartment security
• Catalog sales
• Automated
• Teller Machines (ATM�s)
• Replaces leased ring down circuits
• Hot-Line reservation phones for hotels, air lines, car rentals, etc.

Features:

• Touch Tone programmable
• Telephone line powered
• Non-volatile E2 memory (no batteries required)
• Ring detection
• User programmable security code
• Programmable pauses in one and four second increments
• Programmable to interrupt user
• Touch Tone dialing to help control fraudulent calls from hand held dialers, etc.
• Programmable dialing speed (normal or fast)
• Can be configured to operate from a contact closure (Fax Back Document 818)
• One year warranty
• Made in the USA

Specifications:

• Power: Telephone Line Powered (24V DC 20 mA minimum).
• Environmental: 0° to 32° C (32° to 90° F) with 5% to 95% non-condensing humidity.
• Dimensions: 73.7mm x 53.3 mm x 25.4 mm (2.9" x 2.1" x 1.0")
• Weight: 85 g (3.0 oz)
• Connection: (1) RJ11 plug, (1) RJ11 jack
