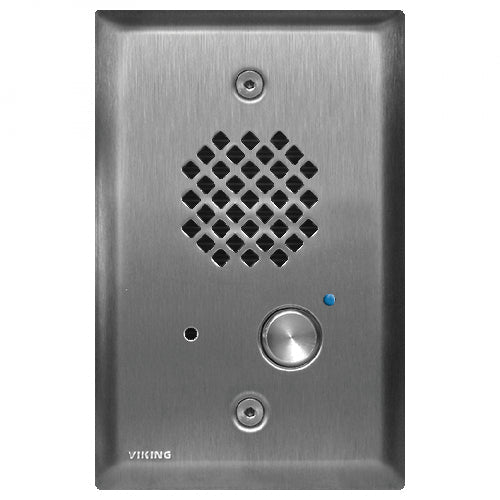

Viking E40 Entry Phone with Enhanced Weather Protection (Stainless Steel)

Key Features:

• Viking entry phone with weather protection
• Compact size: Front panel is the size of a typical single gang midsize wall plate
• Mounting: Flush mounts in a single gang electrical box (2.25" deep x 2.00" wide x 2.84" tall minimum) or surface mounts in a Viking model VE-3x5 (not included, see DOD# 424)
• Available in 5 standard faceplate finishes: Brushed Stainless Steel, Oil Rubbed Bronze, Polished Brass, Satin Black and Satin White
• PNL-40 faceplates: Replacement faceplates with matching screws available in all five standard finishes
• Vandal Resistant Features: 16 gauge polished brass or 18 gauge 304 stainless steel faceplate, 316 stainless steel push button, carbon fiber reinforced plastic speaker screen, scratch resistant powder coating, hex drive mounting screws
• Weather Resistant Features: Mylar speaker, faceplate gasket, mic and speaker gasket, internally sealed (IP67) push button switch, self draining mic mount and UV stable weather resistant powder coating (excluding E-40-SS 304 Stainless Steel faceplate)
• E-40-EWP is designed to meet IP66 Ingress Protection Rating (see DOD# 859 for more information)
• Telephone line powered
• Microphone and speaker volume controls
• Programmable Intelligent call progress detection for automatic hang-up on CPC, silence, busy signal, or time out
• Selectable auto answer feature for monitoring
• Programmable VOX (mic/speaker) switching speed
• Blue LED helps locate push button, indicate ringing and off hook
• Power: Telephone line powered. Minimum 18V DC talk battery voltage with a minimum loop current of 20mA. Loop current may be boosted on low current lines with a Viking model TBB-1B Talk Battery Booster (see DOD# 632).
• Dimensions: Faceplate: 123.8mm x 79.4mm x 4.6mm (4.875" x 3.125" x 0.18"), Phone: 72mm x 46mm x 42mm (2.84" x 1.8" x 1.65")
• Operating Temperature: -34° C to 65° C (-30° F to 150° F)
• Humidity: Standard model: 5% to 95% non-condensing humidity, EWP model: up to 100% humidity
• Speaker Volume: Approximately 62db maximum @ 1m
• Ring Voltage: 25V AC RMS minimum (for auto answer)
• CPC Disconnect Time: 300ms minimum
• REN: 0.8A
• Connections: (2) gel-filled butt connectors
