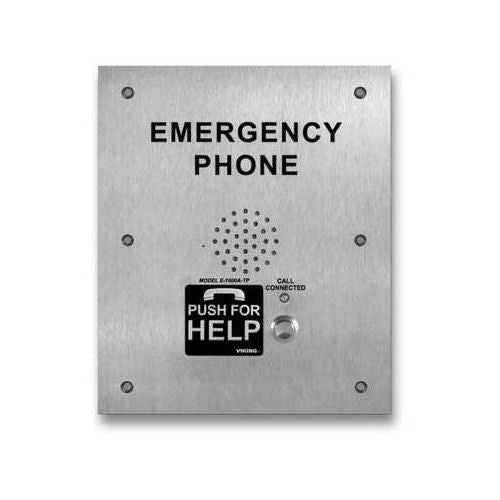

Viking E-1600A-TP-EWP ADA Compliant Emergency Elevator Phone

Key Features:

• Mnfr. Part #: E-1600A-TP-EWP
• Elevators
• Parking ramps/lots
• Pools
• Automated Tellers (ATM)
• Area of refuge locations
• Lobbies
• Entryways
• Roadside emergency stations
• Stadiums
• Convention centers
• Campus Security Sites
• Entryways
• Stairwells in Public Buildings
• Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating, see DOD# 859
• Meets ADA requirements for Emergency Phones:
• Can automatically light the “Call Connected” LED for the hearing impaired
• Transmits a unique location I.D. code or voice announcement
• Grade 2 Braille label for the visually impaired
• Non-volatile digital voice announcer with 16 seconds of voice memory
• Provides contact or switched 12V DC for controlling a strobe light
• Advanced call progress detection
• Handsfree operation
• Phone line powered emergency phone (LDB-3 requires power)
• Non-volatile memory (no batteries required)
• Marine grade 316 stainless steel prevents corrosion
• Dials up to 5 emergency numbers
• Cycles through backup emergency and non-emergency numbers on busy or no-answer
• Hangs up on CPC, silence, busy signal, dial tone, time-out or touch tone command
• Programmable to auto-answer on incoming calls
• Remotely programmable
• Extended temperature range (-15°F to 130°F)
• Central Station Monitoring capability (dials 2 numbers)
• Separate central station voice speed dial number
• High visibility, vandal and weather resistant
• Phone Power: Telephone line powered (24V DC/20mA min)
• LDB-3 Control Module: 120V AC/12V DC 500mA, UL listed adapter provided
• Mounting: Flush mount to Talk-A-Phone ETP towers, wall mounts, boxes and pedestals
• Environmental: -26°C to 54°C (-15°F to 130°F) with 5% to 95% non-condensing humidity
• Material: .125” (11 gauge) brushed stainless steel
• Connections: Color-coded wires with gel-filled butt connectors

Special Order/Lead Time required
