Viking
|
VIKCPC4

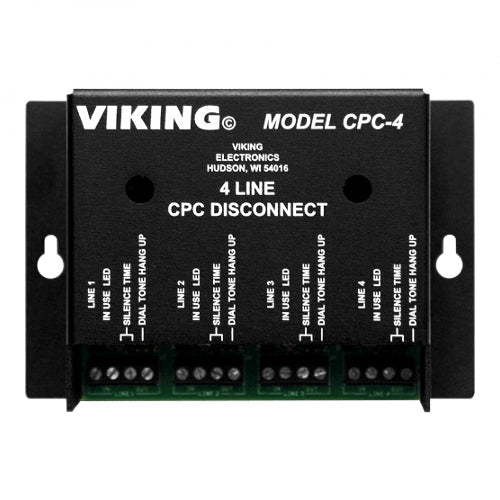

Viking Generate CPC Disconnect Signals
Key Features:
- Mfr. Part #: CPC-4
- Viking calling party control - generate CPC disconnect signals on four separate phone lines
- Phone line powered (no AC needed)
- Handle 4 lines in 1 unit
- Generates CPC disconnect on: Return to dial tone (programmable), Busy signal, Reorder (fast busy), Steady silence (programmable)
- LED shows: In use, Audio detected, Generated CPC signal
- Caller ID compatible
- Power: Telephone line powered (20VDC, 20mA minimum)
- Dimensions: 133mm x 89mm x 44mm (5.25" x 3.5" x 1.75")
- Shipping Weight: 1.13Kg (2.5 lbs)
- Environmental: 0° C to 32° C (32° F to 90° F) with 5% to 95% non-condensing humidity
- CPC Disconnect Time: 1 second nominal
- Connections: 4 position screw terminal block
Special Order/Lead Time required
