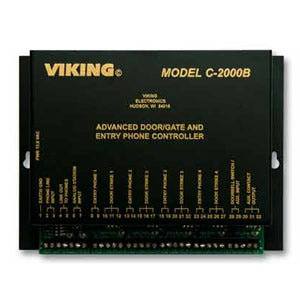

Viking C-2000B Door Entry Controller

Key Features:

• Mfr. Part #: C-2000B
• Viking advanced door/gate entry phone controller
• Allows 1-4 entry phones to share a single telephone line with a residential or business telephone system.
• Use with any analog touch tone phone
• Provide entry phone activated chimes and whole house paging when used with an SLP-1 or SLP-4.
• Up to 6 different keyless entry codes / "one time use" keyless entry codes per entrance.
• Up to 6 master keyless entry codes for use at any entrance
• Analog station mode allows the C-2000B to connect to an unused PABX station port.
• Optional "Privacy Number" allows only selected visitors to call from an entry phone.
• Provides "Caller ID" and "Call Waiting Caller ID"
• Produces "Call Waiting" tones
• Lighted doorbell switch input to activate entry phone call
• One set of normally open and normally closed contacts available for each entry phone.
• Programmable contact activation time
• Auxiliary input to activate timed auxiliary contacts
• Power: 120VAC / 13.8VAC 1.25A, UL listed adapter provided
• Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity.
• Relay Contacts: 5A @ 30VDC/250VAC
• Ring Output: 8 REN, capable of ringing (16) 0.5 REN phones
• Talk Battery: 40V DC
• REN: 0.1A
• Connections: (30) cage clamp screw terminals
