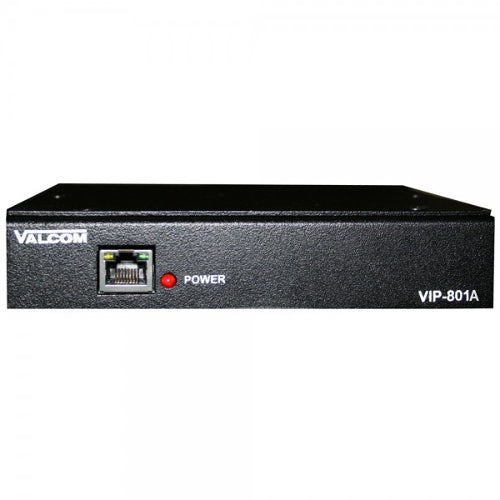

Valcom VIP-801A Networked Page Zone Extender

The Valcom VIP-801A Network Audio Port enables voice access to a single zone of one-way paging over an IP network. This allows page zones to be extended anywhere network connectivity is available. The VIP-801A can be programmed as a SIP device for connectivity to virtually any VoIP telephone system.

Key Features:

• Valcom networked page zone extender
• 1 Audio Input
• 2 Audio Outputs
• 2 Programmable form C relay closures
• 1 Contact Closure Input
• 1 SIP identity for registering to a VoIP telephone system
• RJ-45 for network connection
• No server required
• Front panel activity LED
• AUX Audio input via RCA jack
• AUX input music mutes during page
• Output control contact closure provided during paging output
• Contact closure available for: audio indication and door unlocking
• Protocols DHCP, IGMP v3, UDP, TCP, HTTP, Telnet, FTP
• Barrel jack for optional DC power
• Power over Ethernet (PoE) 802.3af compatible
• Voice Algorithm: G.711 (64kbits/s)(ulaw) / echo suppression
• Input: analog device interface (600 ohm input impedance, VOX and contact closure input)
• Output: analog output interface (less than 50 ohms output impedance; frequency response: 200Hz - 3400Hz; relay closure available)
• Voltage: 24 Vdc @ 250 mA; IEEE 802.3af compatible, class 3 device; regulatory: FCC Part 15 Class A
• Compatible with 25 or 70 volt amplifiers
• Removable screw terminal connectors provided for audio and relay interfaces
• Does not include power supply (Sold Separately Mfr. Part #: VIP-324)

**Power Supply Not Included**
