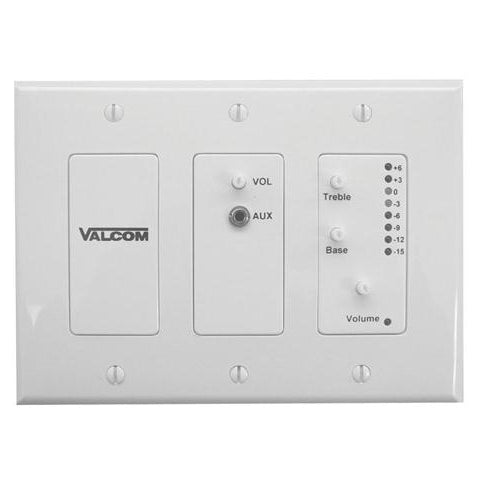

Valcom V-9983-W In-Wall Audio Mixer

Key Features:

• Valcom in-wall audio mixer, white
• Provides active mixing for 1 balanced microphone input and 2 auxiliary inputs
• Additional audio input (building page) with an override feature
• Mounts in 4 gang deep electrical box and is supplied with a 4 gang white decorator style face plate
• Up to 3 additional remote modules (VC-V-9984) may be connected to the main control module
• Each remote module adds 1 balanced microphone and 1 auxiliary input
• Two pair structured cable is used to connect remote input modules to the main mixer
• Contemporary styling to match today's offices, conference rooms and restaurant environments
• Master volume control is provided for final level adjustments
• 8 segment LED meter provides instant visual indication of audio signal levels
• Building page input overrides all other sources (voice operated, switch enabled)
• Full frequency range output for speakers and modified output for horn loads
• Built in compressor (option switch controlled) evens out loud and quiet inputs
• Operates on 24 Vdc requiring 1 valcom power unit

Special Order/Lead Time required
