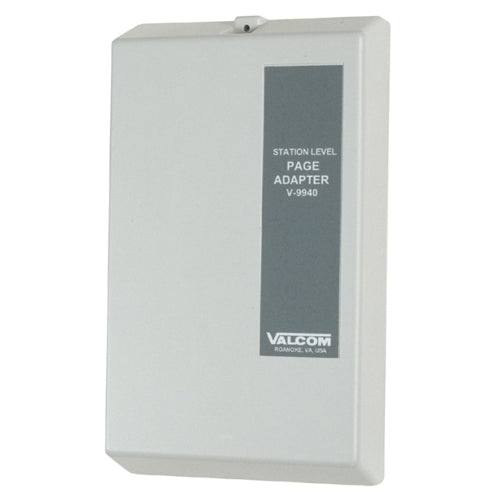

Valcom V-9940 Station Level Page Adapter

The Valcom V-9940 control unit provides a standard telephone line with ring trip and page access. The unit connects the telephone line with one-way paging across a single zone. Expand this page adapter and provide multi-zone paging by interconnecting several units. Features available to the Valcom V-9940 include music mute, answer verification tone, relay contact outputs and intelligent disconnect. An additional input provides support for background music. Use this page adapter to bring expandable, fully-featured paging and background music to your environment.

Key Features:

• Paging Support: 1-zone, 1-way: mulit-zone requires additional units
• Inputs: 600 ohms: telephone line, music, all call expansion
• Outputs: 600 ohm & 8 ohm
• Power Requirement: -24 Vdc, 200 Ma
• Operating Temperature: 32° to 122° F
• Dimensions: 8.20" H x 4.55" W x 2.30" D
• Mounting: wall/surface
