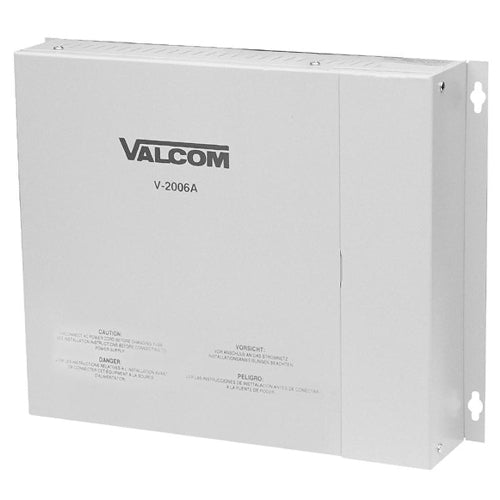

Valcom V-2006A 6-Zone Page Control

The Valcom V-2006A provides control over six zones. Program and access each zone individually. This page control unit supports background music input, a built-in tone generator, a night ring, a time clock tone and door bell chime. Override or mute background music when paging. The unit access pulse dial and tone dial. Field upgradable and customizable options are available.

Key Features:

• 6 Zone one-way page control
• All call
• Background music input, automatically mutes in zone being paged
• Page override for special priority announcements
• Features are programmable per zone
• Built-in tone generator for night ringing, time clock tone, doorbell
• Accepts pulse and tone dial
• Battery back-up input
• Built-in power
• UL listed
• To interface with analog extension or Centrex line add the VC-V-9970
• Access: page port on selected telephone systems, PBX loop start or ground-start trunk port, electronic or 1A2 line key(line card required), or dedicated single line phone set
• Input impedance: 600 ohm
• Music source impedance: 4 to 600 ohm
• Music input level:-10dBm nominal
• DC output: -24 Vdc @ 1.5A
• Power requirements: 230 Vac/1A or 120 Vac/2A
• Weight: 10lbs
• Dimensions: 10.9"H x 13"W x 2.7"D
