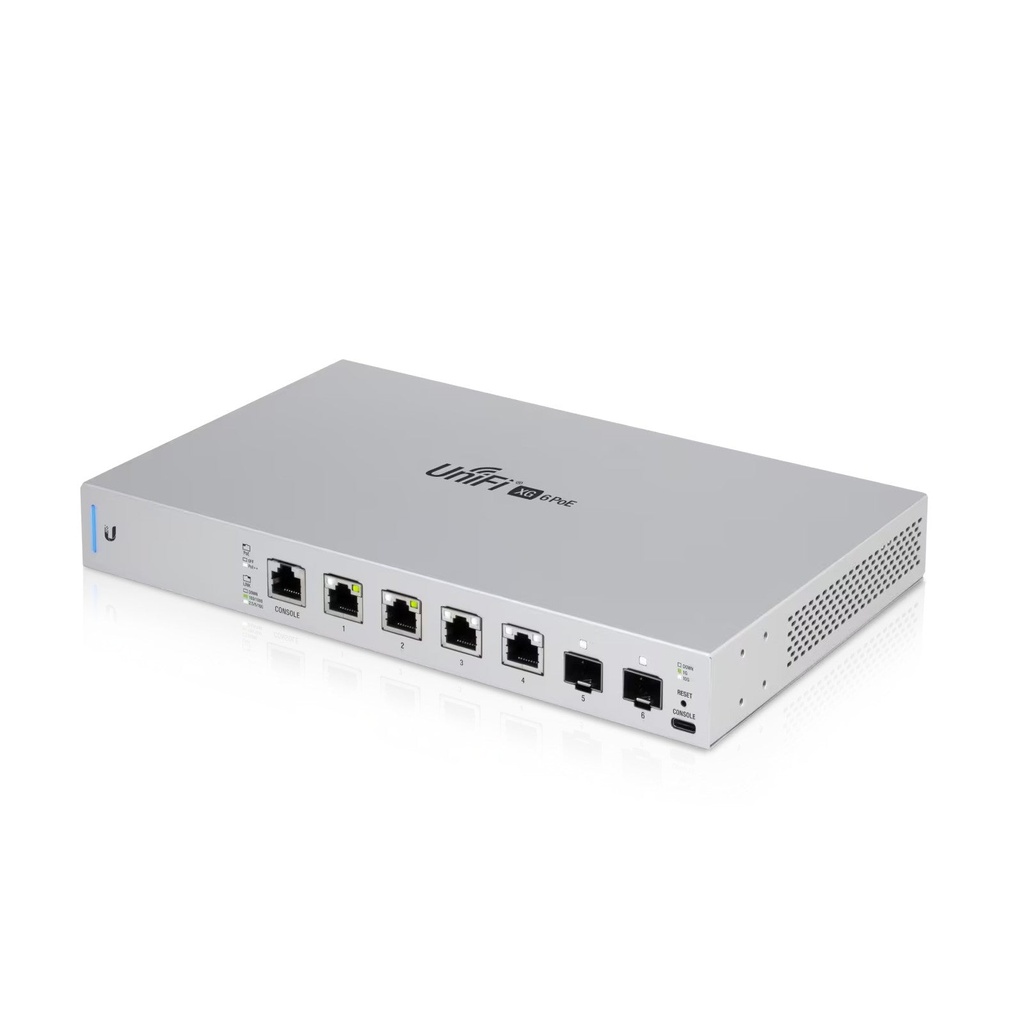

Ubiquiti UBI-US-XG-6POE 10 Gigabit 6-Port 802.3bt PoE++ Layer 2 Switch (New)

A Layer 3, PoE switch with (4) 10 GbE, PoE++ RJ45 ports and (2) 10G SFP+ ports.

Key Features:

• Mfr. Part #: US-XG-6POE
• (4) 1/2.5/5/10 GbE PoE++ ports
• (2) 10G SFP+ ports
• 170W total PoE availability
• Layer 3 switching
• Wired DC backup power

Mechanical

• Dimensions: 165 x 268.1 x 31.8 mm (6.5 x 10.6 x 1.3")
• Weight: 1.3 kg (2.9 lb)
• Enclosure material: SGCC steel

Hardware

• Management interface: Ethernet In-Band, (1) RJ45 Serial port Out-of-Band, (1) USB Type C port Out-of-Band
• Networking interface: (4) 1/2.5/5/10 GbE RJ45 ports, (2) 1/10G SFP+ ports
• PoE interface: (4) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
• Power method: 54V DC, 3.88A power adapter (Included), DC input with terminal block
• Power supply: External AC/DC adapter (Included), DC power source
• Supported voltage range: 44–57V DC
• Max. power consumption: 40W (Excluding PoE output.)
• Total available PoE: 170W, Max. PoE wattage per port by PSE: PoE++: 60W
• Voltage range PoE mode: PoE: 44–57V, PoE+/PoE++: 50—57V
• ESD/EMP protection: Air: ± 18kV, contact: ± 12kV
• Operating temperature: -5 to 45° C (23 to 113° F)
• Operating humidity: 5 to 95% noncondensing
• Certifications: CE, FCC, IC

LEDs

• System: Status
• Ethernet: PoE, Link/Speed/Activity
• SFP+: Link/Activity
