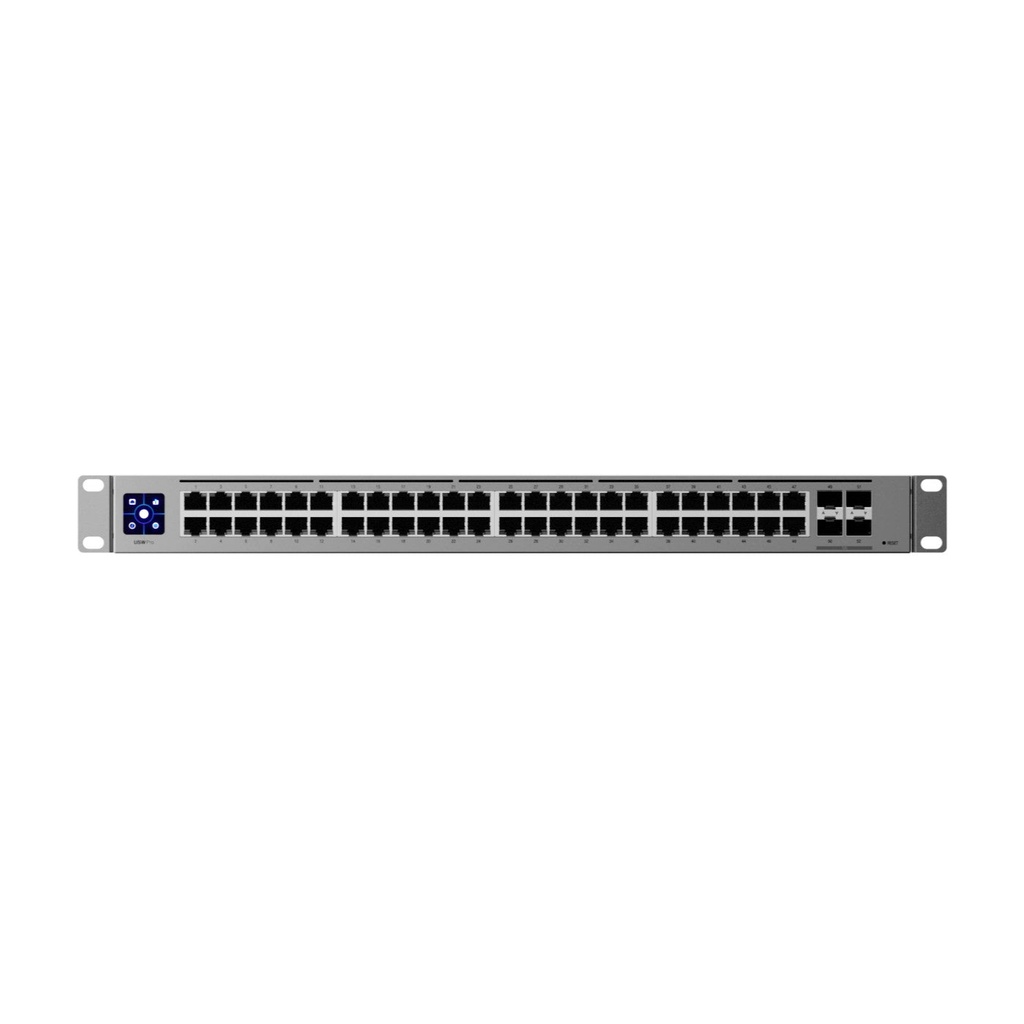

Ubiquiti USW-PRO-48 48-Port Gigabit Managed Network Switch (New)

A 48-port, Layer 3 switch supporting 10G SFP+ connections with fanless cooling.

Key Features:

• Mfr Part #: USW-PRO-48
• (48) GbE ports
• (4) 10G SFP+ ports
• DC power backup-ready
• Layer 3 switching
• Silent cooling

Mechanical

• Dimensions: 442.4 x 285.4 x 43.7 mm (17.4 x 11.2 x 1.7")
• Weight: Without mounting brackets: 4 kg (8.8 lb)
• With mounting brackets: 4.1 kg (9 lb)
• Enclosure material: SGCC steel

Hardware

• Management interface: Ethernet In-Band
• Networking interface: (48) GbE RJ45 ports, (4) 1/10G SFP+ ports
• Total non-blocking throughput: 88 Gbps
• Switching capacity: 176 Gbps
• Forwarding rate: 130.944 Mpps
• Power method: Universal input, 100—240V AC, 50/60 Hz
• USP RPS DC input, 11.5V DC, 5.22A
• Power supply: AC/DC, internal, 60W
• Supported voltage range: 100—240V AC
• Max. power consumption: 60W
• ESD/EMP protection: Air: ± 16kV, contact: ± 12kV
• LCM display: (1) 1.3" touchscreen
• Button: Factory reset
• Shock and vibration: ETSI300-019-1.4 Standard
• Operating temperature: -5 to 45° C (23 to 113° F)
• Operating humidity: 10 to 90% noncondensing
• Certifications: CE, FCC, IC

LEDs

• System: Status
• Ethernet: Speed/link/activity
• SFP+: Link/activity
• RPS: Status

Application Requirements

• UniFi Network: Version 5.12.11 and later
