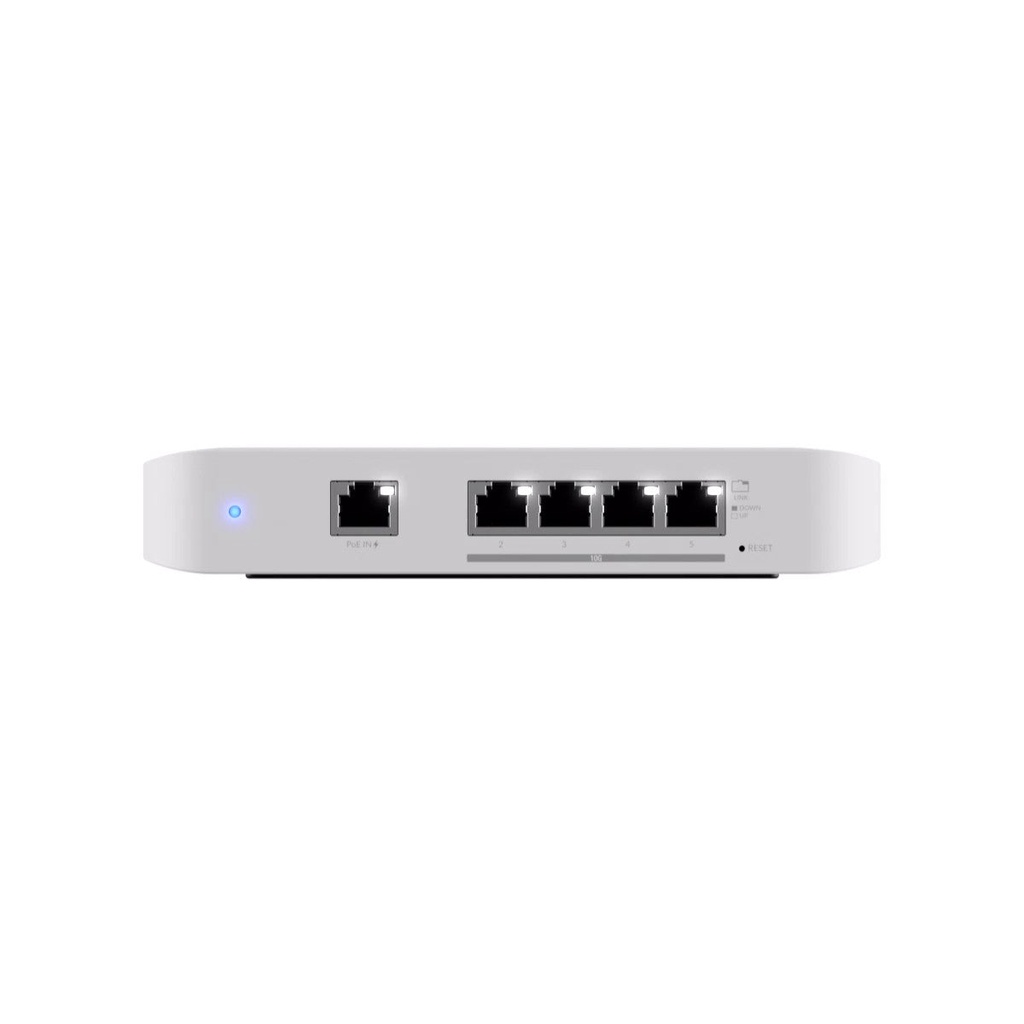

Ubiquiti USW-FLEX-XG 4-Port 10G Managed Switch (New)

A compact, 5-port, Layer 2 switch that supports 10 GbE speeds and can be powered with PoE or a 5V USB-C adapter.

Key Features:

• Mfr. Part #: USW-FLEX-XG
• (4) 10 GbE ports
• (1) GbE PoE+ input port for power

Mechanical

• Dimensions: 135 x 185 x 32 mm (5.3 x 7.3 x 1.3")
• Weight: 1.2 kg (2.6 lb)
• Enclosure material: Polycarbonate

Hardware

• Management interface: Ethernet In-Band
• Networking interface: (1) GbE, PoE+ RJ45 port, (4) 10 GbE RJ45 ports
• Total non-blocking throughput: 41 Gbps
• Switching capacity: 82 Gbps
• Forwarding rate: 61.012 Mpps
• Power method: (1) PoE+, 50—57V DC, 25W, (1) USB Type-C, 5V DC, 5A
• Power supply: PoE+ (Pins 1, 2+/3, 6- or 4, 5+/7, 8-), AC/DC power adapter, 5V DC, 5A, 1.5 m cord (Included)
• Supported voltage range: 90—264V AC (Adapter)
• Max. power consumption: 25W
• ESD/EMP protection: Air: ± 16kV, contact: ± 12kV
• Button: Factory reset
• Operating temperature: -5 to 45° C (23 to 113° F)
• Operating humidity: 10 to 90% noncondensing
• Certifications: CE, FCC, IC

LEDs

• System: Status
• Ethernet: Speed/link/activity

Application Requirements

• UniFi Network: Version 6.1.67 and later
