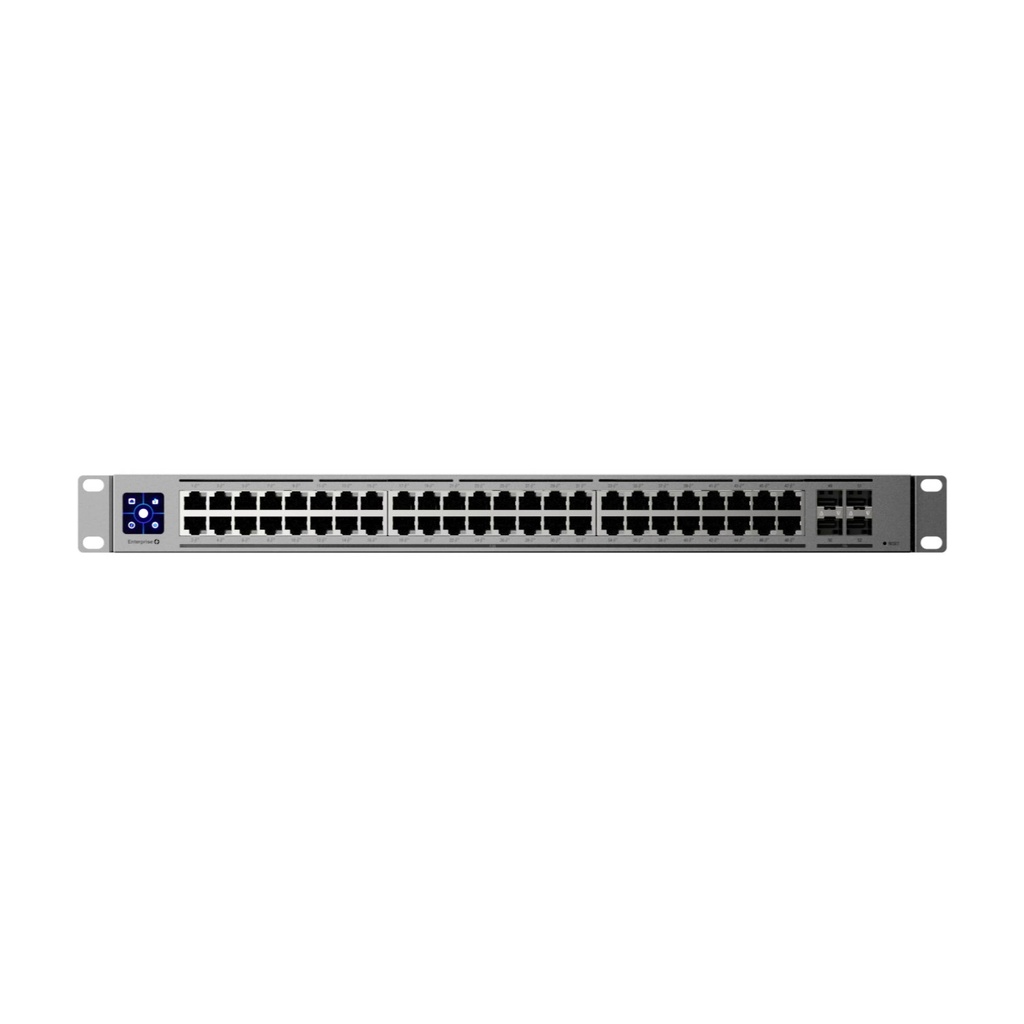

Ubiquiti USW-Enterprise-48-PoE 720W 48-Port Layer 3 Wwitch with 2.5 GbE PoE+ (New)

A 48-port, Layer 3 switch with 2.5 GbE PoE+ output.

Key Features:

• Mfr. Part #: USW-ENTERPRISE-48-POE
• (48) 2.5 GbE PoE+ ports
• (4) 10G SFP+ ports
• 720W total PoE availability
• DC power backup-ready
• Layer 3 switching

Mechanical

• Dimensions: 442 x 44 x 400 mm (17.4 x 1.7 x 15.7")
• Weight: Without mounting brackets: 6.2 kg (13.67 lb), With mounting brackets: 6.3 kg (13.89 lb)
• Enclosure material: SGCC steel

Hardware

• Management interface: Ethernet In-Band
• Networking interface: (48) 2.5 GbE RJ45 ports, (4) 1/10G SFP+ ports
• PoE interface: (48) PoE/PoE+ (Pins 1, 2+; 3, 6-)
• Total non-blocking throughput: 160 Gbps
• Switching capacity: 320 Gbps
• Forwarding rate: 238.095 Mpps
• Power method: (1) Universal AC input, 100—240V AC, 10A Max, 50/60 Hz, (1) USP-RPS DC input, 52V DC, 13.84A; 11.5V DC, 13A
• Power supply: AC/DC, internal, 100—240V, 10A Max.
• Supported voltage range: 100—240V AC
• Max. power consumption: 150W (Excluding PoE output)
• Total available PoE: 720W
• Max. PoE wattage per port by PSE: PoE+: 34.2W
• Voltage range PoE mode: PoE: 44—57V, PoE+: 50—57V
• Services: SMB Layer 3 PoE GbE Switch
• ESD/EMP protection: Air: ± 16kV, contact: ± 12kV
• LCM display: (1) 1.3" color touchscreen
• Button: Factory reset
• Operating temperature: -5 to 40° C (23 to 104° F)
• Operating humidity: 10 to 90% noncondensing
• Certifications: CE, FCC, IC

LEDs

• System: Status
• Ethernet: Link/activity
• SFP+: Link/activity

Application Requirements

• UniFi Network: Version 6.2.26 and later
