Ubiquiti
|
UBIUSW48

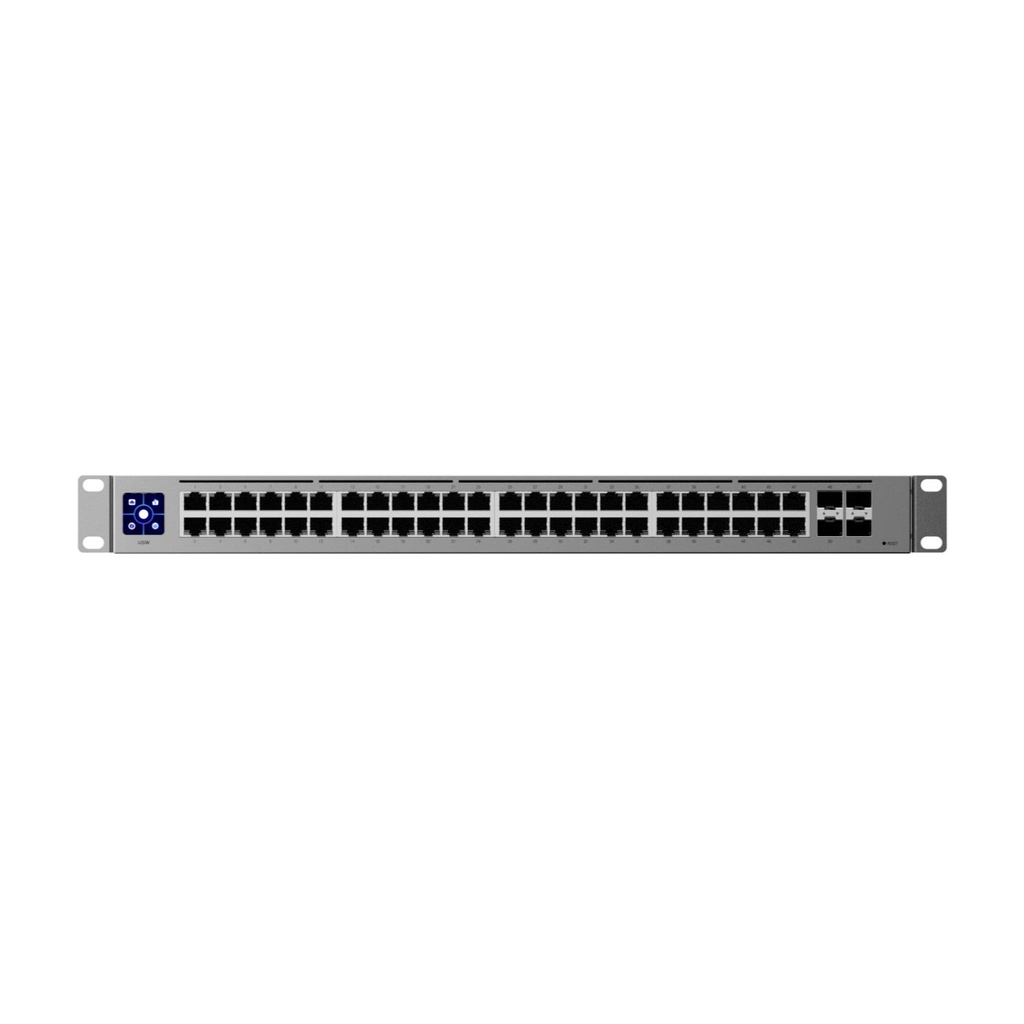

Ubiquiti USW-48 48-Port Gigabit Switch (New)
A 48-port, Layer 2 switch with a silent, fanless cooling system.
Key Features:
- Mfr. Part #: USW-48
- (48) GbE ports
- (4) 1G SFP ports
- Fanless, silent cooling
Mechanical
- Dimensions: 442.4 x 285 x 43.7 mm (17.4 x 11.2 x 1.7")
- Weight: Without mounting brackets: 3.9 kg (8.6 lb)
- With mounting brackets: 4 kg (8.8 lb)
- Enclosure material: SGCC steel
Hardware
- Management interface: Ethernet In-Band
- Networking interface: (48) GbE RJ45 ports, (4) 1G SFP Ethernet ports
- Total non-blocking throughput: 52 Gbps
- Switching capacity: 104 Gbps
- Forwarding rate: 77.376 Mpps
- Power method: Universal input, 100—240V AC, 50/60 Hz
- Power supply: AC/DC, internal, 60W
- Supported voltage range: 100—240V AC
- Max. power consumption: 40W
- ESD/EMP protection: Air: ± 16kV, contact: ± 12kV
- LCM display: (1) 1.3" touchscreen
- Button: Factory reset
- Operating temperature: -15 to 40° C (5 to 104° F)
- Operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC
LEDs
- System: Status
- Ethernet: Speed/link/activity
- SFP: Link/activity
Application Requirements
- UniFi Network: Version 7.2.94 and later
