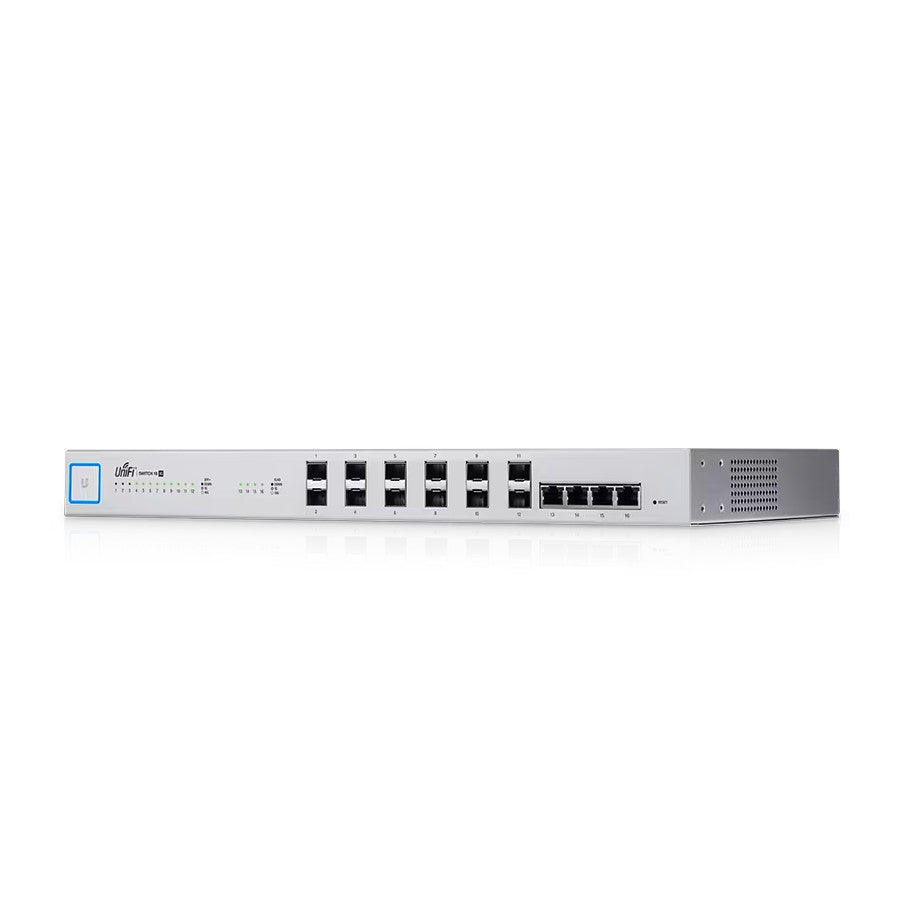

Ubiquiti US-16-XG 10G 16-Port Managed Switch (New)

Layer 2 aggregation switch with (12) 10G SFP+ ports and (4) 10GbE RJ45 ports.

Key Features:

• Mfr. Part #: US-16-XG
• (4) 10 GbE RJ45 ports
• (12) 10G SFP+ ports

Mechanical

• Dimensions: 442.4 x 221 x 43.7 mm (17.4 x 8.7 x 1.7")
• Weight: Without mounting brackets: 2.6 kg (5.8 lb)
• With mounting brackets: 2.7 kg (6 lb)
• Enclosure material: SGCC steel

Hardware

• Management interface: Ethernet In-Band, (1) RJ45 Serial port Out-of-Band
• Networking interface: (12) 1/10G SFP+ ports, (4) 1/10 GbE RJ45 ports
• Total non-blocking throughput: 160 Gbps
• Switching capacity: 320 Gbps
• Forwarding rate: 238.10 Mpps
• Power method: Universal input, 100—240V AC, 50/60 Hz, 24/48V DC Terminal Block, 20–57V DC, 56W
• Power supply: AC/DC, internal, 56W DC
• Supported voltage range: 100—240V AC, 20–57V DC
• Max. power consumption: 36W (Excludes SFP/SFP+ modules.)
• ESD/EMP protection: Air: ± 24kV, contact: ± 24kV
• Sound level*
  • Fan Level 0: 1.0 dBr
  • Fan level 1: 10.7 dBr
  • Fan level 2: 12.2 dBr
  • Fan level 3: 12.8 dBr
  • * Background noise level: 27.5 dBa.
• Shock and vibration: ETSI300-019-1.4 Standard
• Operating temperature: -5 to 40° C (23 to 104° F)
• Operating humidity: 5 to 95% noncondensing
• Certifications: CE, FCC, IC

LEDs

• System: Status
• Data ports: Speed/Link/Activity
