Tripplite
|
TPLU44406NDP4K6B

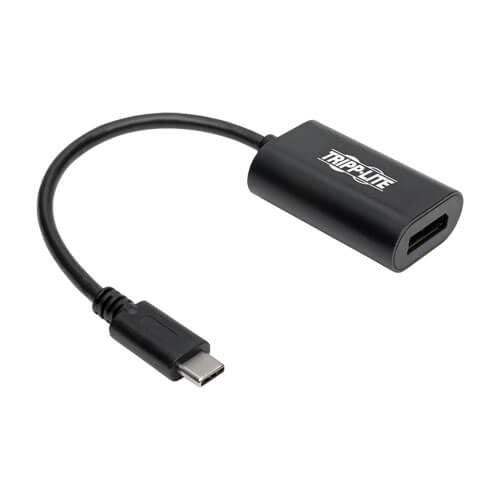

Tripp-Lite AC U444-06N-DP4K6B Thunderbolt3 USB 3.1 Gen 1 USB-C to DP 4K Adapter (New)
The U444-06N-DP4K6B USB 3.1 Gen 1 USB-C to DisplayPort 4K Adapter (M/F) helps you transmit digital audio and 4K video from your tablet, laptop, Chromebook, MacBook, smartphone or PC to a DisplayPort-enabled television, monitor or projector. It’s an ideal tool for giving video presentations in conference rooms and classrooms, editing multiple documents on a larger screen, or streaming video for digital signage in crystal-clear 4K.
With a source device that also supports USB DisplayPort Alternate Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary.
Highlights
- Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode
- Ideal for giving video presentations, editing multiple documents or streaming video for digital signage
- Extends video from your primary display to another
- Duplicates the same video on 2 displays
- Converts a secondary display to your primary display
- Supports UHD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz
- Supports 24-bit Deep Color (8 bits per channel)
- Supports 7.1-channel surround sound
- Fumble-free reversible USB-C plug connects in either direction for quick connection every time
- Plug-and-play operation with no software, drivers or external power required
- Half the footprint of a credit card for easy carrying in a pocket, purse or laptop bag
- Backward compatible with non-4K displays
Specifications
INPUT
Bus Powered: Yes
Product Length (in.): 6.00
Material of Construction
ABS
Color
White
Cable Outer Diameter (OD)
4.0mm
Cable Jacket Rating
VW-1
ENVIRONMENTAL
Operating Temperature Range: -4 to 158oF (-20 to 70oC)
Storage Temperature Range: -4 to 185oF (-20 to 85oC)
Relative Humidity: 5% to 95% RH, Non-Condensing
BTUs: 0.61 BTU/Hr
Power Consumption (Watts): 0.18
CONNECTIONS
Ports: 1
Side A - Connector 1: USB C (MALE)
Side B - Connector 1: DISPLAYPORT (FEMALE)
Connector Plating: Nickel
Contact Plating: Gold
FEATURES and SPECIFICATIONS
Max Supported Video Resolution: 4K x 2K (3840 x 2160) at 60Hz
HDMI Specification: 1.2
USB Specification: USB 3.0 (up to 5 Gbps), USB 3.1 Gen 1 (up to 5 Gbps)
Driver Required: No
Audio Specification: 7.1-Channel Surround Sound
CERTIFICATIONS
Certifications: Tested to CE, FCC, RoHS, REACH
SYSTEM REQUIREMENTS
Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode
Display device with DisplayPort input
PACKAGE INCLUDES
U444-06N-DP4K6B USB 3.1 Gen 1 USB-C to DisplayPort 4K Adapter (M/F)
Owners manual
Item Dimension (L"xW"xH")
3 x 6 x 2
Weight
1.00 lb
