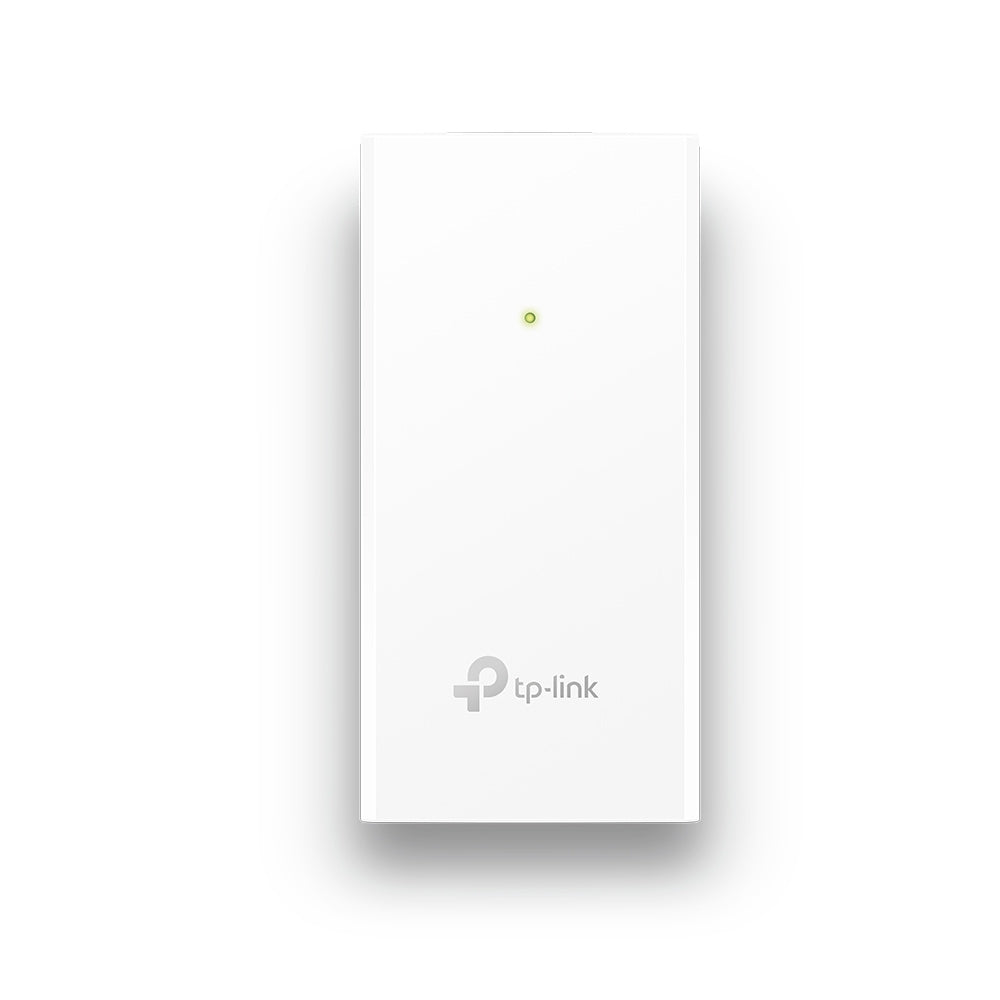

TP-Link TL-POE2412G 24V 12W Passive PoE Adapter (New)

• 24V passive PoE supported
• Gigabit Ethernet ports
• Auto-adjusted power depends on requirements
• Convenient wall-mounting design
• Plug-and-Play, no configuration required

Passive PoE Adapter
Powers TP-Link products that support 24V passive PoE

Power Your Devices
Use the passive PoE adapter TL-POE2412G to simultaneously supply power and transmit data to a passive PoE device.

Convenient Wall-Mounting Design
TL-POE2412G offers a convenient wall-mounting brackets to be easily installed on a wall.

Compatible Devices
TL-POE2412G is the recommended power supply for compatible devices.

Specifications

HARDWARE FEATURES
Interface
2 x 10/100/1000Mbps RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
1 x 24VDC PoE Port

Network Media
10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100 Omega STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100 Omega STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Power Supply
12W (Max. 24VDC)

LED Indicator
Power (PWR)

OTHERS
Certification
FCC, CE, RoHS

Package Contents
24V, 12W Passive PoE Adapter TL-POE2412G
Power Cord
Wall Mounting Kits

Environment
Operating Temperature: 0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing

Item Dimension (L"xW"xH")
8 x 5 x 3

Weight
1.00 LB
