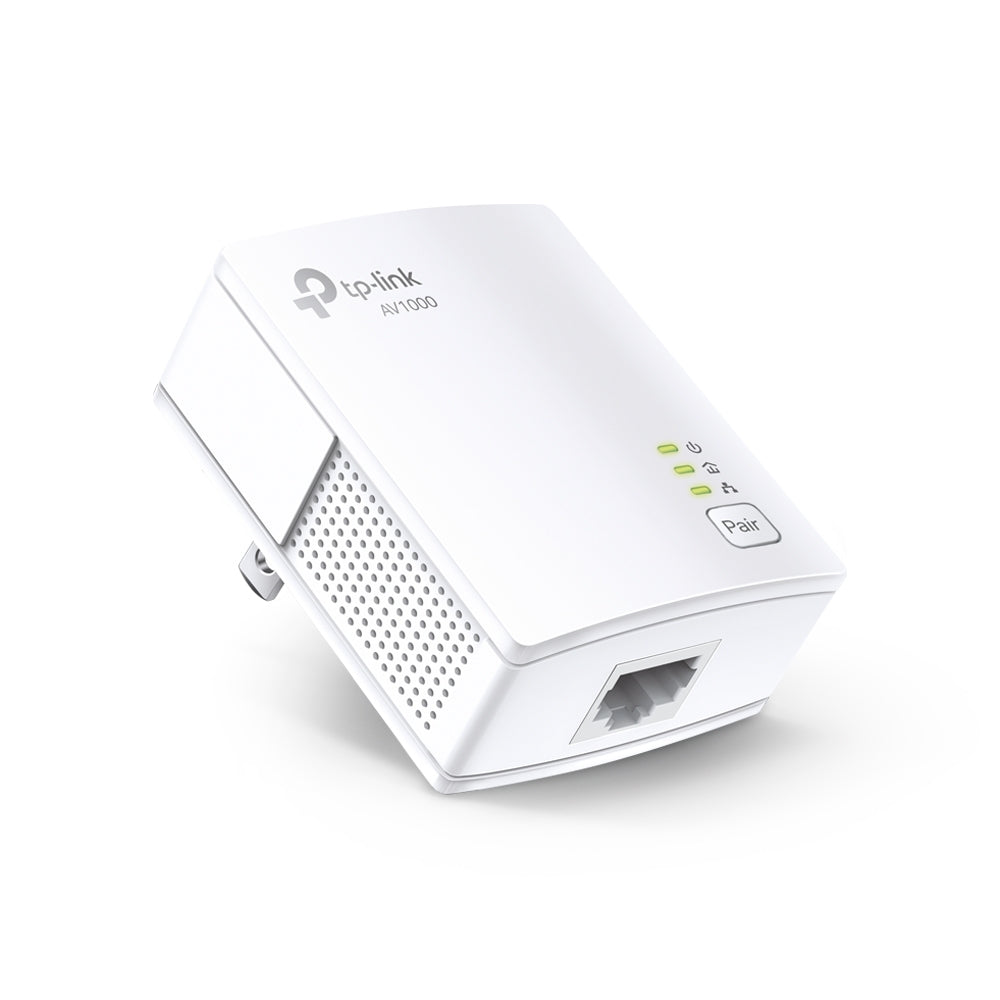

TP-Link TL-PA7017 AV1000 Gigabit Powerline Adapter (New)

AV1000 Gigabit Powerline Adapter

• HomePlug AV2 Standard - high-speed data transfer rates of up to 1000 Mbps, supporting all your online needs
• Gigabit port - provides secure wired networks for desktops, smart TVs or games consoles
• Plug and play - allows setup of your powerline network in minutes, so you can enjoy fast, seamless wired connections right away
• Patented Power - Saving Mode - automatically reduces power consumption by up to 85%

Extend Reliable Gigabit Network through Electrical Wiring
AV1000 Gigabit Powerline Adapter

1000Mbps! Ideal for Slick Streaming and Smooth Downloads
Comes with advanced HomePlug AV2 technology, TL-PA7017 provides users with high-speed data transfer rates of up to 1000Mbps, which is ideal for bandwidth intensive applications such as multiple HD/3D/4K video streaming, online gaming and large file transfers.

Gigabit Port for Maximum Connectivity
With one Gigabit Ethernet port, TL-PA7017 allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA7017 the perfect home entertainment companion.

Plug and Play, No Configuration Required
Connect a powerline adapter to the router, plug another powerline adapter into a wall socket in another room, and you’re done!

Pair for more security
Press the "Pair" button on each adapter to create a more secure network.

Specifications

HARDWARE FEATURES
Plug Type
US

Standards and Protocols
HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Interface
Gigabit Ethernet Port

Button
Pair/Reset button

Power Consumption
Maximum: 2.7W (220V/50Hz)
Typical: 2.3W (220V/50Hz)
Standby: 0.5W (220V/50Hz)

LED Indicator
Power, Powerline, Ethernet

Range
Up to 300 meters/1000 feet over existing electrical wiring

SOFTWARE FEATURES
Modulation Technology
OFDM (PLC)

Encryption
Powerline Security: 128-bit AES Encryption

OTHERS
Certification
FCC, RoHS

Package Contents
- 2 x AV1000 Gigabit Powerline Adapter TL-PA7017
- 2 x Ethernet Cable
- 1 x Quick Installation Guide

System Requirements
Windows 2000/XP/2003/Vista/7/8/8.1/10, Mac, Linux

Environment
Operating Temperature: 0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing

Item Dimension (L"xW"xH")
6 x 8 x 4

Weight
2.00 lb
