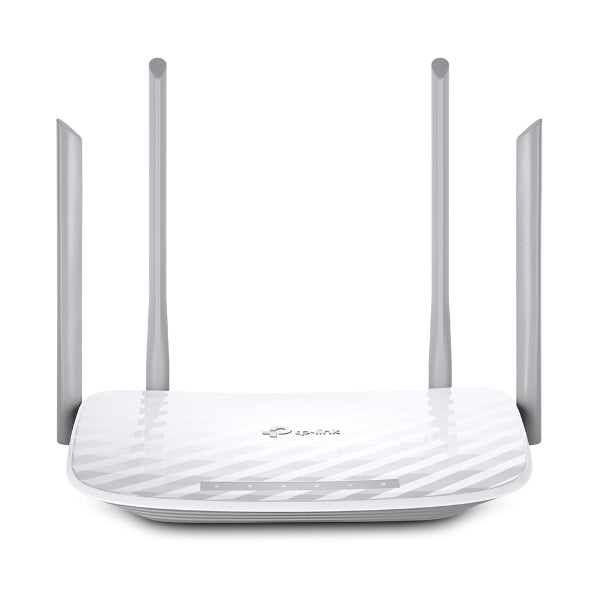

TP-Link Archer C5 Wireless Dual-Band AC1200 Gigabit Router 2.4GHz/5GHz (New)

802.11ac - The Next Generation of Wi-Fi
TP-LINKs Archer C5 comes with the next generation Wi-Fi standard 802.11ac, 3 times faster than wireless N speeds and delivering a combined wireless data transfer rate of up to 1.2Gbps. With 867Mbps wireless speeds over the crystal clear 5GHz band and 300Mbps over the 2.4GHz band, the Archer C5 is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.

1.2Gbps Dual Band Connections for Lag-Free Work and Entertainment
The Archer C5 operates over both the 2.4GHz and 5GHz bands, ensuring amazing wireless performance. Simultaneous Dual Band offers you the flexibility of two dedicated networks with multiple times the bandwidth for your needs. Simple tasks like sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band all at the same time.

6 Antennas for Fully Expanded Coverage
With 3 external 5dBi antennas serving the 5GHz band and 3 internal antennas serving the 2.4GHz band combined with higher quality antenna technology, you can maintain high speeds across greater distances. This provides you with incredible wireless coverage and reliability from anywhere in your large home or office.

Full Gigabit Wired Connections for Ultrafast Data Transfer Speeds
With one gigabit WAN port and four gigabit LAN ports, speeds can be up to 10 faster than fast Ethernet connections. The Archer C5 is a powerful hub to support a robust and extremely fast wired network.

Specifications

HARDWARE FEATURES
Button
WPS/Reset Button
Wireless On/Off Switch
Power On/Off Button
External Power Supply
12VDC / 2.5A
Interface
4 10/100/1000Mbps LAN Ports
1 10/100/1000Mbps WAN Port
2 USB 2.0 Ports
Antenna Type
2 dual band detachable antennas (RP-SMA)

WIRELESS FEATURES
Wireless Standards
IEEE 802.11ac/n/a 5GHz
IEEE 802.11n/g/b 2.4GHz

Frequency
5GHz and 2.4GHz
Signal Rate
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps

Reception Sensitivity
5GHz:
11a 54Mbps: -74dBm
11ac HT20: -67dBm
11ac HT40: -63dBm
11ac HT80: -59dBm
11n HT20: -71dBm
11n HT40: -69dBm
2.4GHz:
11g 54M: -76dBm
11n HT20: -73dBm
11n HT40: -71dBm

Transmit Power
CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm

Wireless Functions
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

Wireless Security
64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption

SOFTWARE FEATURES
WAN Type
Dynamic IP/Static IP/PPPoE/L2TP(Dual Access)/PPTP(Dual Access)

Management
Access Control
Local Management
Remote Management

DHCP
Server, Client, DHCP Client List,
Address Reservation

Quality of Service
WMM, Bandwidth Control

Port Forwarding
Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS
DynDns, Comexe, NO-IP

VPN Pass-Through
PPTP, L2TP, IPSec

Access Control
Parental Control, Local Management Control, Host List, Access
Schedule, Rule Management

Firewall Security
DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding

Protocols
Supports IPv4 and IPv6

USB Sharing
Support Samba(Storage)/FTP Server/Media Server/Printer Server

Guest Network
2.4GHz guest network 1
5GHz guest network 1

OTHERS
Certification
CE, FCC, RoHS

Package Contents
AC1200 Wireless Dual Band Gigabit Router Archer C5
2 detachable antennas
Power supply unit
Resource CD
Ethernet Cable
Quick Installation Guide

System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows
7, Windows 8, MAC OS, NetWare, UNIX or Linux

Item Dimension (L"xW"xH")
13 x 10 x 3

Weight
2.40 lb
