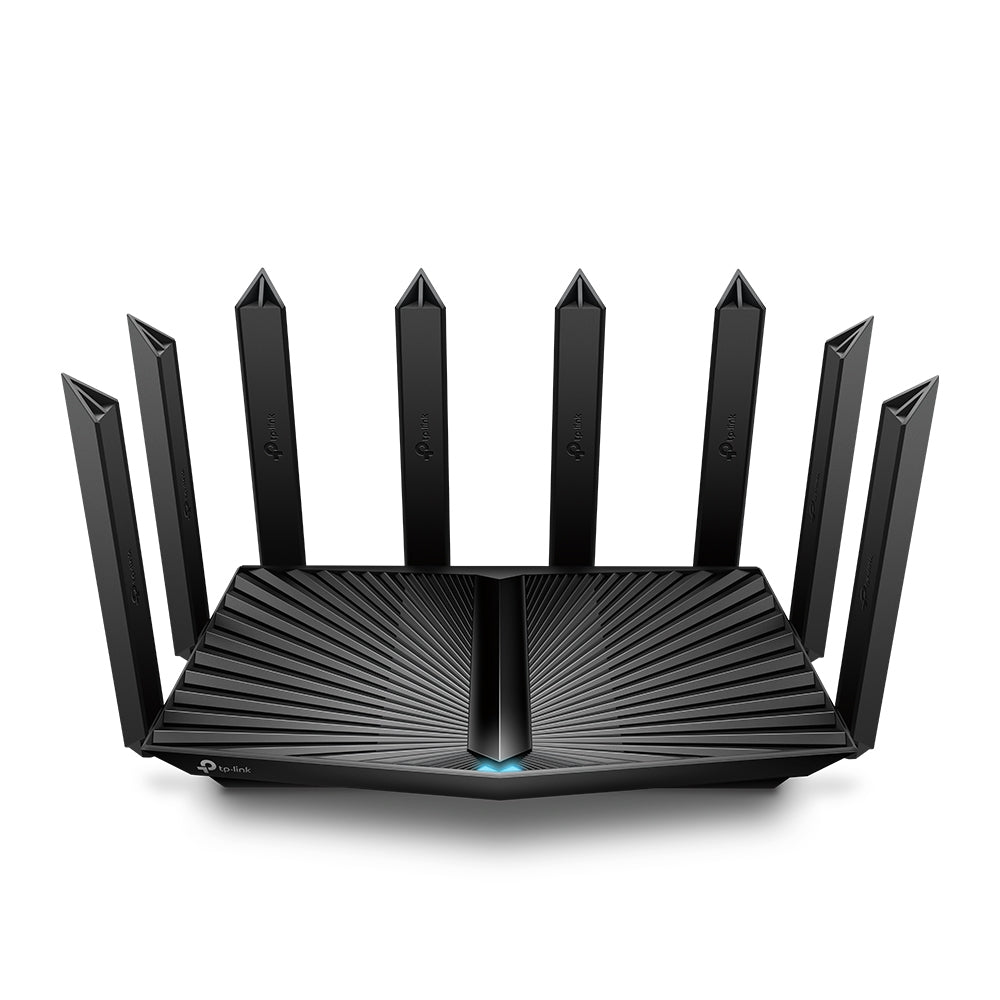

TP-Link Archer AX80 AX6000 8-Stream Wi-Fi 6 Router with 2.5G Port (New)

• Lightning-Fast AX6000 Wi-Fi: Up to 6.0 Gbps (4804 Mbps + 1148 Mbps) WiFi for faster browsing, streaming, and downloading, all at the same time.
• 2.5G Multi-Gigabit Port: 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports + 1× USB 3.0 port ensure max flexibility and boosted throughput.
• Maximized Coverage: Eight high-gain antennas equipped with Beamforming ensure vast coverage.
• More Devices with Less Lag: OFDMA and MU-MIMO technology deliver data to multiple devices simultaneously.
• Powerful CPU: 2.0 GHz quad-core processor ensures fast transmission speeds and smooth operation of numerous devices and applications.
• VPN Client Supported: Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device.
• TP-Link HomeShield: Enhanced security defends against the latest cyber threats.
• TP-Link OneMesh Supported: Flexibly Create Whole Home WiFi with Archer AX80 by adding a OneMesh supported Range Extender.
• Compatible with Alexa: Control your router via voice commands and make your life smarter and easier with Amazon Alexa.

Specifications

WIRELESS
Standards: Wi-Fi 6

• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds: AX6000

• 5 GHz: 4804Mbps (802.11ax, HE160)
• 2.4 GHz: 1148 Mbps (802.11ax)

WiFi Range: 3+ Bedroom Houses

• 8× Fixed High-Performance Antennas
  Multiple antennas form a signal-boosting array to cover more directions and large areas

• Beamforming
  Concentrates wireless signal strength towards clients to expand WiFi range

• High-Power FEM
  Improves transmission power to strengthen signal coverage

WiFi Capacity: High

• Dual-Band
  Allocate devices to different bands for optimal performance

• OFDMA
  Simultaneously communicates with multiple Wi-Fi 6 clients

• Airtime Fairness
  Improves network efficiency by limiting excessive occupation

• DFS
  Access an extra band to reduce congestion

• 8 Streams
  Connect your devices to more bandwidth

Working Modes

• Router Mode
• Access Point Mode

HARDWARE
Ethernet Ports

• 1× 2.5 Gigabit WAN/LAN Port
• 1× Gigabit WAN/LAN Port
• 3× Gigabit LAN Ports

USB Support

• 1× USB 3.0 Port

USB Sharing

• FTP Server
• Media Server
• Samba Server

Buttons

• LED On/Off Button
• WPS Button
• Wi-Fi On/Off Button
• Power On/Off Button
• Reset Button

Power

• 12 V/3.3 A

SECURITY
WiFi Encryption

• WPA3*6
• WPA2
• WPA
• WPA/WPA2-Enterprise (802.1x)

Network Security

• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway

HomeShield Security

• Real-Time IoT Protection
• Malicious Site Blocker
• Intrusion Prevention System
• DDoS Attack Prevention
• Home Network Scanner

Guest Network

• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network

VPN Server

• OpenVPN
• PPTP
• L2TP

VPN Client

• OpenVPN
• PPTP
• L2TP

SOFTWARE
Protocols

• IPv4
• IPv6

Service Kits

• HomeShield

OneMesh™

• OneMesh™ Supported
  Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

Parental Controls
HomeShield Parental Controls

• Custom Profiles
• Professional Content Filter Library
• Family Time
• Bedtime
• Off Time
• Time Rewards
• Family Online Time Ranking
• Pause the Internet
• Weekly and Monthly Reports

WAN Types

• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP

Quality of Service
QoS by Device
Cloud Service

• Auto Firmware Upgrade
• OTA Firmware Upgrade
• TP-Link ID
• DDNS

NAT Forwarding

• Port Forwarding
• Port Triggering
• DMZ
• UPnP

IPTV

• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN

DHCP

• Address Reservation
• DHCP Client List
• Server

DDNS

• TP-Link
• NO-IP
• DynDNS

Management

• Tether App
• Webpage

OTHER
System Requirements

• Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
• Cable or DSL Modem (if needed)
• Subscription with an internet service provider (for internet access)

Certifications
FCC, RoHS
Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing

TEST DATA
WiFi Transmission Power
FCC:
<24dBm (5.25GHz~5.35GHz&5.47GHz~5.73GHz)
<30dBm (5.15GHz~5.25GHz&5.735GHz~5.835GHz)
<30dBm (2.4GHz)
WiFi Reception Sensitivity
2.4 GHz:
11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCS11: -67dBm,
11ac VHT40 MCS0: -94dBm, 11ac VHT40 MCS11: -64dBm,
11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -67dBm,
11ax HE40 MCS0: -94dBm, 11ac HE40 MCS11: -64dBm
5 GHz:
11ac VHT20 MCS0: -96dBm, 11ac VHT20 MCS11: -66dBm,
11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -63dBm,
11ac VHT80 MCS0: -91dBm, 11ac VHT80 MCS11: -61dBm,
11ac VHT160 MCS0: -86dBm, 11ac VHT160 MCS11: -58dBm,
11ax HE20 MCS0: -96dBm, 11ax HE20 MCS11: -66dBm,
11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -63dBm,
11ax HE80 MCS0: -91dBm, 11ax HE80 MCS11: -61dBm,
11ax HE160 MCS0: -86dBm, 11ax HE160 MCS11: -58dBm

PHYSICAL
Dimensions (W×D×H): 10.9×7.2×2.3 in (277.3×183.9×57.3 mm)
Package Contents

• Wi-Fi Router Archer AX80
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
