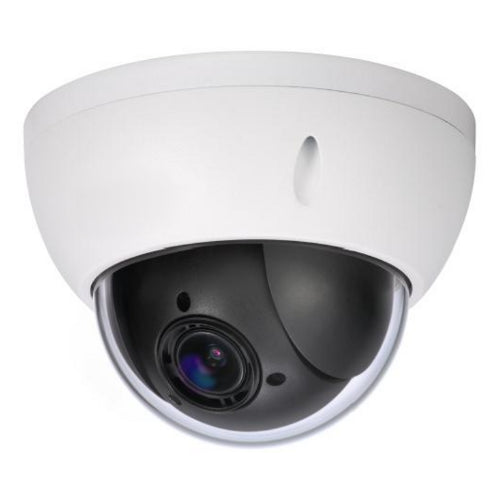

SCE SD22204T-GN 2MP Full HD Network Mini PTZ Dome Camera

Key Features

• 4x optical zoom
• H.264 & MJPEG dual-streams encoding
• Max. 25/30fps@1080P(1920x1080) & 50/60fps@720P resolution
• WDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• Max 100°/s pan speed
• Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
• Support intelligent 3D positioning with DH-SD protocol
• Micro SD memory, POE/ Wifi optional

Technical Specifications

Camera

• Image Sensor: 1/2.7" CMOS
• Effective Pixels: 1920(H) x 1080(V), 2Megapixels
• Scanning System: Progressive
• Electronic Shutter Speed: 1/1 ~ 1/30,000s
• Min. Illumination: Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6
• S/N Ratio: More than 50dB

Camera Features

• Day/Night: Auto(ICR) / Color / B/W
• Backlight Compensation: BLC / HLC / WDR
• White Balance: Auto, ATW, Indoor, Outdoor, Manual
• Gain Control: Auto / Manual
• Noise Reduction: Ultra DNR (2D/3D)
• Privacy Masking: Up to 24 areas
• Digital Zoom: 16x

Lens

• Focal Length: 2.7mm~11mm(4x Optical zoom)
• Max Aperture: F1.6~ F2.8
• Focus Control: Auto / Manual
• Angle of View: H: 93.5° ~ 30.24°

PTZ

• Pan/Tilt Range: Pan: 0° ~ 355°; Tilt: 0° ~ 90°, auto flip 180°
• Manual Control Speed: Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s
• Preset Speed: Pan: 100° /s; Tilt: 60° /s
• Preset: 300
• PTZ Mode: 5 Pattern, 8 Tour, Auto Pan, Auto Scan
• Speed Setup: Human-oriented focal length/ speed adaptation
• Power up Action: Auto restore to previous PTZ and lens status after power failure
• Idle Motion: Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period

Video

• Compression: H.264 / MJPEG
• Resolution: 1080P(1920× 1080)/ 720P(1280× 720) / D1(704× 576/ 704× 480) /CIF(352× 288/352× 240)
• Frame Rate: Main Stream 1080P(1 ~ 25/30fps)/ 720P (1 ~ 50/60fps), Sub Stream D1/CIF(1 ~ 25/30fps)
• Bit Rate: H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps

Intelligent Function

• IVS: Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection
• Face Detection: Support

Network

• Ethernet: RJ-45 (10/100Base-T)
• Protocol: IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
• ONVIF: ONVIF Profile S
• Max. User Access: 20 users
• Smart Phone: iPhone, iPad, Android, Windows Phone

Auxiliary Interface

• Memory Slot: Micro SD, Max 64GB

General

• Power Supply: DC12V, POE
• Power Consumption: 10W
• Working Environment: -20oC ~ 60oC / Less than 90% RH
• Ingress Protection: IP66 & IK10
• Dimensions: Φ132.7 (mm) x 116.5 (mm)
• Weight: 0.95kg
