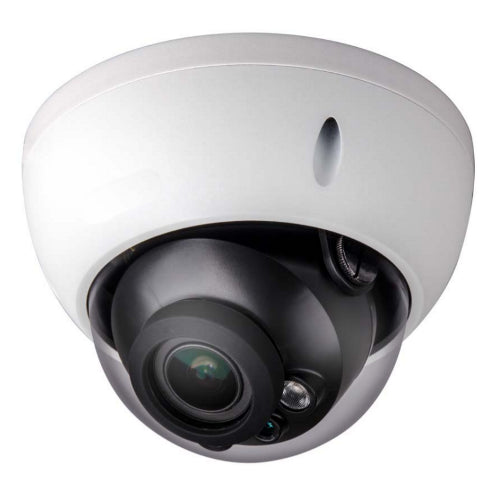

SCE HDBW2220R-Z 2.4MP 1080P Vandal Proof IR HDCVI Dome Camera (Motorized Lens)

Key Features

• 1/2.9" 2Megapixel CMOS
• 25/30@1080P, 25/30/50/60fps@720P
• High speed, long distance real-time transmission
• HD and standard definition switchable
• OSD Menu, control over coaxial cable
• Day/Night(ICR), AWB, AGC, BLC, 3D-DNR
• 2.7~12mm motorized lens
• Max. IR LEDs length 30m, Smart IR
• IP66, IK10, DC12V

Technical Specifications

Camera

• Image Sensor: 1/2.9" 2Megapixel CMOS
• Effective Pixels: 1984(H)×1105(V)
• Electronic Shutter: 1/3s~1/100,000s
• Video Frame Rate: 25/30/50/60fps@720P; 25/30fps@1080P
• Synchronization: Internal
• Min. Illumination: 0.005Lux@F1.2(AGC ON), 0Lux IR on
• Video Output: 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)

Camera Features

• Max. IR LEDs Length: 30m, Smart IR
• Day/Night: Auto(ICR) / Color / B/W
• Noise Reduction: 2D/3D
• OSD Menu: Support

Lens

• Focal Length: 2.7~12mm motorized
• Lens Type: Motorized / Fixed Iris
• Mount Type: Φ14

General

• Power Supply: DC12V±10%
• Power Consumption: Max 9.6W
• Working Environment: -30°C~+60°C / Less than 95%RH (no condensation)
• Transmission Distance: Over 300m via 75-3 coaxial cable
• Ingress Protection: IP66 & IK10
• Dimensions: Φ122mm×89mm
• Weight: 0.45kg
