SecurityCamExpert
|
SCEH04A

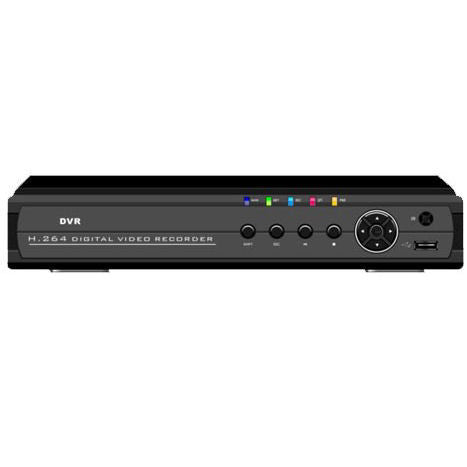

SCE H04A 4CH DVR with 960H Resolution
Key Features:
- 4CH DVR
- 960H Resolution
- SATA: 1
- Real Time Recording: 4*960H
- Real Time Playback: 4*960H
- PTZ Control
- HDMI Port
- Chipset: 3520D
- Resolution: 960H
- Video: 4CH
- Audio: 4CH
Specs:
- Main Processor: HISILICON 3520D*1
- System Resource: Pentaplex: Live recording, Playback, Backup, Remote access, PTZ control, Mobile monitoring
- Control Mode: Front panel, USB mouse, IR remote control, Keyboard, Network
- Recording (real time): 4CH 960H
- VGA: Support:1280*1024
- Video: 4CH BNC Input 1CH TV Output 1CH VGA Output 1HDMI
- Audio: 4CH RCA Input,1CH RCA Output
- Alarm: NO
- Resolution: 960H
- Playback(real time): 4CH 960H
- PTZ: 1*RJ485 Support PELCO-D,PELCO-P Procotol
- USB: 2 * USB2.0
- Mobile phone: Support iPhone,Symbian OS,Blackberry and Android Mobile phone
- HDD Capacity: Up to 2TB,SATA Interface HDD*1
- Network Interface: 1*RJ45,100Mbps Ethernet
- Upgrade: USB DISK,Network
- Backup: USB DISK,Network
- Power supply: 12V/2A
- Working environment: -10℃~+55℃/10~90%RH/86~106Kpa
Network Config:
- Mobile App: QMeye (Android & iPhone)
- PC App: DVR Client
Ports:
- LAN (intranet): 7777 UDP & TCP
- WAN (extranet): 5800 UDP & TCP
