SecurityCamExpert
|
SCE7832HD960H

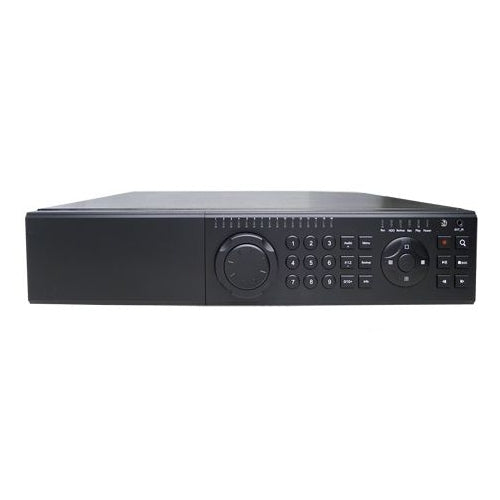

SCE 7832HD-960H 32CH DVR
Features:
- Mnfr Part #: 7832HD-960H
- Adopt standard H.264 format
- Real Time 960H Display & Recording
- Utilize graphic user interface
- Support full mouse control
- Support VGA output; dual stream
- Support IE browser to remote view
- Support mobile surveillance by phones with WinCE, Android, Blackberry, Symbian, and iPhone
- Adopt standard FAT32 file system, compatible with computers
- Support CMS software for multi devices central management
- Support multi-level user management. Administrator can manage the operating rights of other users.
- Support DVD & USB Backup
- Support event log. Users can check the earlier working status of the DVR by User & Log Management
Specifications:
- Compression Format: H 264 Main Profile
- Video Output: Composite - 1.0V p-p/75Ω BNC×2, VGA×1, HDMI×1
- Video Input: Composite - 1.0V p-p/75Ω BNC×32
- HDMI/VGA Resolution: 1920*1080/1280*1024/800*600
- Record Resolution: 960*576/704*576/352*288 (PAL), 960*480/704*480/352*240 (NTSC)
- Display Frame Rate: 800FPS (PAL), 960FPS (NTSC)
- Record Frame Rate: 800FPS (PAL), 960FPS (NTSC)
- Audio Input: RCA X16
- Audio Output: RCA X1
- Alarm Input: NO or NC 16CH
- Alarm Output: 4CH
- Record Mode: Manual/Sensor/Timer/Motion Detection
- Simplex/Duplex/Triplex: Pentaplex
- Network Interface: RJ45 (LAN, Internet)
- PTZ Control: Yes
- Communication Interface: RS485, USB 2.0×2 (One for backup, another for USB mouse)
- Disk Info: SATA×4+DVD-RW×1 or SATA×8, E-SATA×1
- Remote Controller: Yes
- Power Supply: 110V-220V
- Temperature: 0°C-50°C
- Humidity: 10%-90%
- Average Operationg Power Excluding HDD: ≤250W
** Hard Drive not included (sold separately) **
