SecurityCamExpert
|
SCE7604NISEP4NVR

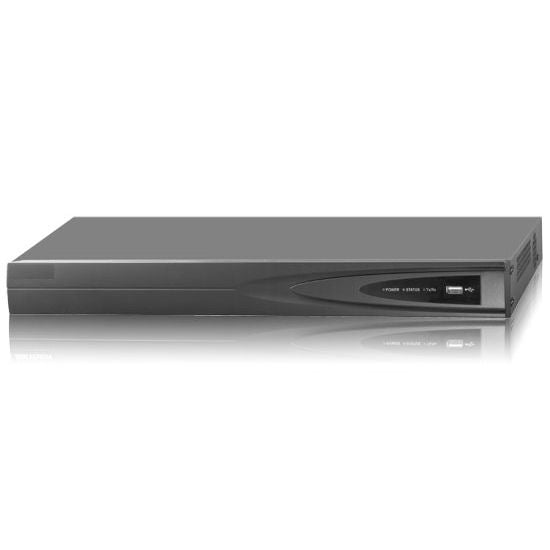

SCE 7604NI-SEP4 4CH 1080P POE NVR
Key Features:
- Mnfr Part #: 7604NI-SEP4
- Connectable to network cameras with up to 5 Megapixels resolution.
- Support live view, storage and playback of video at 5 Megapixels resolution.
- 4 independent PoE network interfaces are provided.
- Zoom in for any area when playback.
- Playing reversely.
- Adverse playback for multi-channel.
- Realize instant playback for assigned channel during multi-channel display mode.
- Digital zoom in live view and playback mode.
- 4-CH simultaneous playback at D1 resolution.
- Customization of tags, searching and playing back by tags.
- Searching record files by events (alarm input/motion detection).
- Holiday recording schedule configuration.
- HDD quota management; different capacity can be assigned to different channel.
- Redundant recording.
- 2 SATA interfaces available.
- Dual system design ensures high reliability and stability.
- 1 self-adaptive 10M/100M/1000M network interface.
- IPv6 is supported.
- TCP/IP protocol, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, UPnP and iSCSI are supported.
- Compression Format - H.264
- OS - Embedded Linux
- IP Video Input - (4-CH, Max 20Mbps Input)
- VGA Output - (1-CH, resolution:1920×1080P/60Hz,1600×1200/60Hz,1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz) HDMI Output - 1-ch, resolution:
1920 × 1080P /60Hz, 1920 × 1080P /50Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720/60Hz, 1024 × 768 /60Hz - Recording Resolution - 5MP / 3MP / 2MP / 1080P / 720P / VGA / D1 / VGA / DCIF / CIF / QCIF
- Simultaneous Playback - (4-CH D1 (Real-time) 8-CH, 4-CH 720P, 2-CH 1080P)
- Playback Resolution - 5MP / 3MP / 2MP / 1080P / 720P / VGA / D1 / VGA / DCIF / CIF / QCIF
- Dual Stream - Main and Sub-Streams
- Audio Input- (1-CH RCA)
- Audio Output - (1-CH RCA)
- Backup Format - MP4
- SATA - 2 SATA Interfaces for 2HDD's
- Capacity - UP to 4TB capacity for each disk
- Network Interface - 1 RJ45 10M/100M/1000M adaptive Ethernet 4 independent 10/100 Mbps PoE Ethernet
- USB Interface - 2 USB 2.0 Interfaces
- Serial Interface - 1 RS-485 Interface
- Built-In PoE Standard - 802.3af Standard
- Power Consumption - 52W Total
- Power Supply - 100 ~240VAC, 47 ~63Hz, 3A
- Consumption - ≤ 15 W (without hard disk)
- Working Temperature - (-10 °C ~ 55 °C)
- Humidity - (10%~90%)
- Chassis - 19-inch rack mounted 1U chassis
- Dimensions - 17.5″ × 11.4″ ×1.8″ (W x D x H)
Network Config:
- Mobile App - iVMS-4500 (Android & iPhone)
- PC App - iVMS-4200
Ports:
- PC & Mobile Port - 8000 UDP & TCP
