Samsung
|
SAMOSTEPRIA-REF

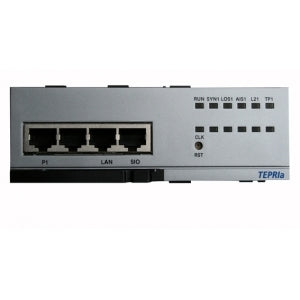

Samsung OS7200 TEPRIa T1/PRI Trunk Card (Refurbished)
Key Features:
- Samsung TEPRI/TEPRIa T1/E1/PRI Trunk Card
- KPOSDBTE1/XAR
- Selection function for E1, T1 and ISDN PRI (via programming), and functions as the Q-SIG
- Transmits voice via the trunk line and a channel transmits the voice data of 64Kbps
- Functions of a resistance circuit that satisfies both of the T1 (100Ω) and E1 (120Ω)
- Output port protection for line monitors
- Provides selectable line Codecs (HDB3, AMI)
- Local/remote loop function
- Functions for the HDLC or Common Associated Signaling (CAS) through the Common Channel Signaling (CCS)
- This card can be installed in slots 3, 4, and 5 of the main cabinet and slot 3 of the expansion cabinet
- A maximum of (4) PRI/TEPRIa boards can be installed per system
- When programmed as a T1 card, it provides up to 24 trunk circuits in any combination of the following:
- Loop start lines
- DID (Direct Inward Dialing)
- Ground start lines
- E & M tie lines or two way DID calling When programmed as a PRI it will provide 23 bearer channels and 1 data channel (23B+D)
