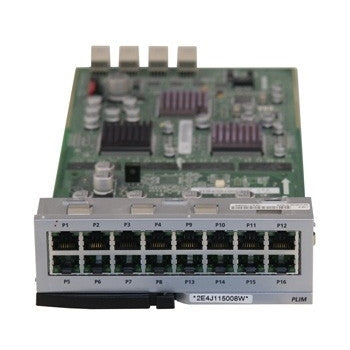

Samsung KPOSDBLIP/XAR OS7200 LAN Interface Module with POE

Key Features:

• Samsung LAN Interface Module w/PoE (PLIM)
• KP-OSDBLIP/XAR
• Layer 2 LAN switch
• Sends/receives data from the internal LAN providing (16) 10/100 Base-T auto sensing full/half duplex LAN ports
• PoE provides power to all IEEE 802.af compliant devices including: Samsung ITP phones and SMT-R2000 WAP’s
• Can power any compliant devise through any of its Ethernet ports
• Can be installed as a Managed Switch when installed in slot 2 with a WIM card in slot 1 - When installed as a Managed Switch if offers many advance features for network security and QoS
• Can be installed as an Unmanaged Switch with no WIM card present Maximum of 8 PLIMs can be installed in a two cabinet system
• Sixteen 10/100 Base-T auto sensing full/half duplex LAN ports (RJ-45)
• PoE provides power to all IEEE 802.af compliant devices including: Samsung ITP phones and SMT-R2000 WAP’s
• L2 Switching - Managed or Unmanaged
• VLAN Functions (802.1q)
• QoS (802.1p)
• Multi-Casting (IGMP Snooping)
• Spanning Tree Protocol
• Note:
  • The PLIM can be installed in slot 2–5 of any OfficeServ 7200 cabinet - maximum 8 in a two cabinet system.
  • The PLIM can be installed in any universal slot of the OfficeServ 7400 cabinet - no maximum on the number that may be provisioned in the system.
  • Requires "Data Certification"
