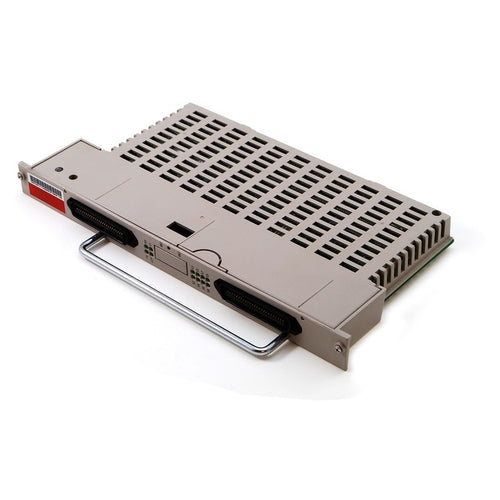

Samsung iDCS 500 LCP2 Card (Refurbished)

More Information:

• Samsung OS500 Local Control Processor (LCP2)
• KP500DBLCP
• Installs in a dedicated processor slot (slot 10) of each Expansion KSU
• Does not reduce the available universal card slots
• The DRAM memory of the LCP2 is 4 MB, while the DRAM memory of the LCP is 2 MB
• Note: Only one of any type of daughter board may be installed on any processor card
• The LCP2 card has position for three daughter boards:
  • The first daughter board position (LCP2-D1) supports the Mulit-Frequency Module (MFM) and the R2/CID Module (RCM2)
  • The second daughter board position (LCP2-D2) supports the MFM, RCM2 or the Miscellaneous (MISC) cards
  • The third daughter board position (LCP2-D3) supports the MFM or the RCM2 cards
