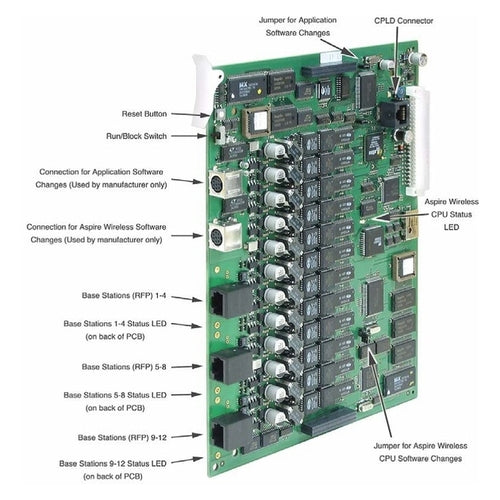

NEC Aspire IP1WW-12DSIU-A1 DSIU PCB Card (Refurbished)
Features:
- The 4DSIU, 8DSIU or 12DSIU PCB provides the ability to use Aspire Wireless (DECT) phones with the Aspire system.
- Each 4DSIU PCB allows up to 8 Base Stations to be connected.
- Each RFP connector on the PCB provides connection to 4 Base Stations.
- Base Stations are powered by the DSIU PCB, whenever a DSIU PCB is installed in an Aspire cabinet, two power supplies must be installed.
- Only one DSIU PCB can be installed in a system with a maximum of 120 handsets and 12 Base Stations connected.
- No ports are consumed by this PCB, however, the extension ports will be assigned when the phone is connected.
- The load factor for each version of PCB is 10.
- Each Base Station on the card adds an additional load factor of 2.
- Total load factor for the 4DSIU = 18; the 8DSIU = 26; the 12DSIU = 34.
- The maximum number of B-channels supported is 32, which means that the DSIU PCB (any version) can support a maximum of 32 conversations at one time.
