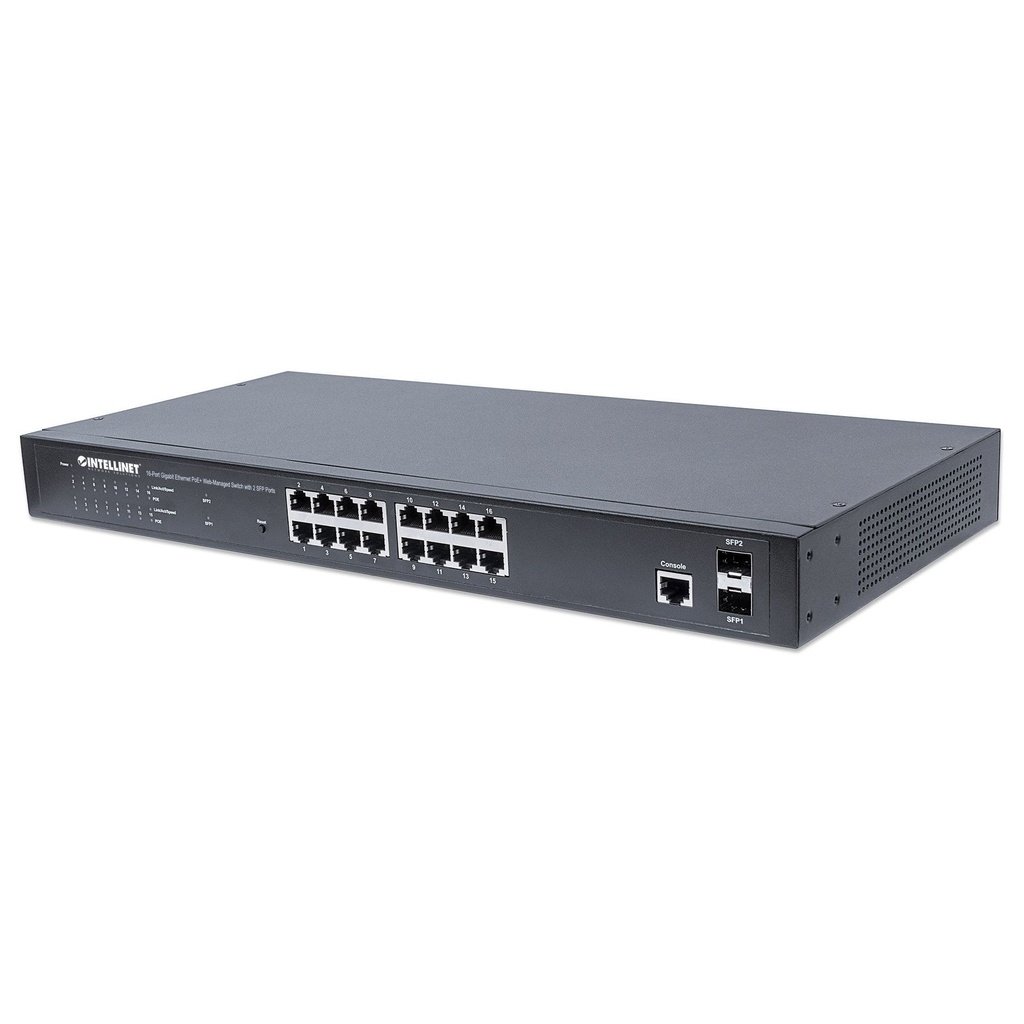

Intellinet 561341 16-Port Gigabit PoE+ Web-Managed Switch With 2 SFP Ports (New)

Key Features:

• Mfr. Part #: 561341
• 16-Port Gigabit Ethernet PoE+ Switch Web-Managed & 2 SFP Ports
• Provides power and data connection for up to 16 PoE network devices
• Save installation cost by delivering data and power over existing network cables
• 10/100/1000 auto-sensing ports automatically detect optimal network speeds
• Two small form-factor pluggable GBIC module slots (SFP)
• IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
• Power output up to 30 watts per port
• PoE power budget of 220 watts
• 36 Gbps switch fabric
• Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras, etc.)
• Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
• All RJ45 ports with Auto-MDIX and NWay auto-negotiation support
• Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
• PoE management functions include PoE port settings, priority, power-on delay, scheduled PoE device restart and PoE device monitoring
• The Powered Device Monitor feature (PDM) restarts any connected PoE device that fails to respond or send out network traffic
• SNMP Management and Remote Monitoring (RMON)
• SNMP V1, V2C, V3 with RMON groups 1, 2, 3 & 9
• IPv4/v6 dual protocol
• Supports VLAN (tag-based and port-based)
• Provides IEEE 802.1x port-based security
• Supports link aggregation (trunking)
• Supports bandwidth control per port
• Supports port mirroring
• Supports two types of QoS: port-based and DSCP
• Broadcast storm control with multicast packet rate settings
• 512 kBytes buffer memory
• Supports 8k MAC address entries
• Supports jumbo frames up to 9 kBytes
• Supports Rapid Spanning Tree/Spanning Tree protocol
• Store and forward switching architecture
• Full/half duplex operation
• IEEE 802.3x flow control for full duplex
• Configuration via Web browser, Telnet or SSH
• Remote Reboot/restart
• LEDs for power, link/activity and PoE
• Two high-volume cooling fans ensure perfect ventilation
• Brand: Intellinet
