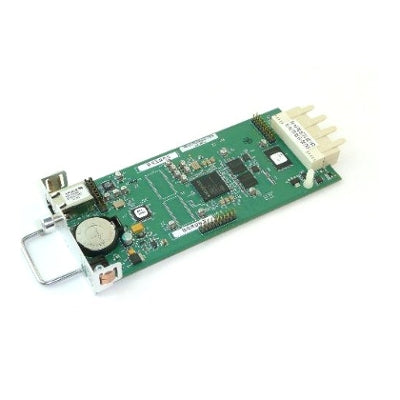

Inter-tel 580.2000 PM-1 Processor (Refurbished)

The Processor Module (PM-1) contains the main controlling microprocessor and associated control logic and memory circuits. The PM-1 is under the control of the IPR Application, which is stored in flash memory and activated when the system is powered up. Without a Processor Expansion Card (PEC-1) attached, the PM-1 drives the Mitel CS-5200 system. The PM-1 with a PEC attached drives the Mitel CS-5400 system and forms the Base Server of the CS-5600 system. The PEC provides 82 additional IP resources and increases the system processing capability.

Key Features:

• Mitel 5000 580.2000 PM-1 Processor Module
• Database back-up battery: (3.6V, lithium ion, coin cell rechargeable battery) Supports the database for at least 1 day of continuous system down time. On the PM-1 module, the LED labeled BAT ALM indicates the charge status of the battery. When the BAT ALM LED is not lit, the battery is adequately charged. When the LED lights green, the battery is recharging.
• LED indicators: Shows main processor operation and module removal indicators.
• IP Port (100Base-T): An 8-pin jack provides IP connection directly to the system with CAT5 or CAT5e cable. In addition, the IP Port can be used to load Call Processing software or software licenses, or to program the database.
• IP Port (100Base-T): An 8-pin jack provides IP connection directly to the system with CAT5 or CAT5e cable. In addition, the IP Port can be used to load Call Processing software or software licenses, or to program the database.
• Caller ID receivers: Provides four resources for receiving Caller ID.
