Hanwha
|
HWAPWR24AC13ULW
Hanwha PWR-24AC-1-3-ULW 1 Camera 24VAC 3Amp Power Supply

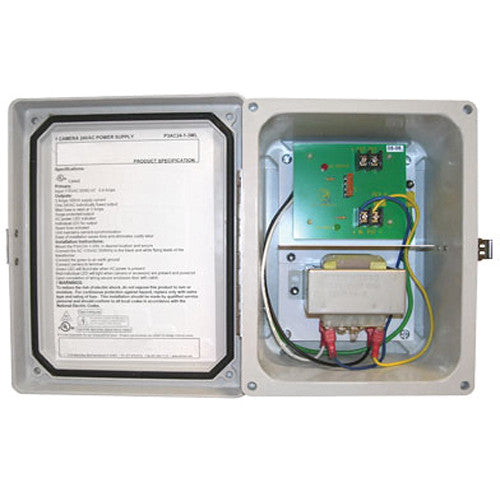

The PWR-24AC-1-3-ULW is a CCTV power center engineered to manage remote camera and accessory power requirements in a NEMA 4X weatherproof enclosure. The PWR-24AC-1-3-ULW distribution module is designed with 1 individually fused output for powering up to 1 CCTV camera or accessory. It will provide 24Volts AC via distribution to one fused output with a total of 3.0 Amps continuous supply current.
Key Features:
- Mfr. Part #: PWR-24AC-1-3-ULW
- Input: 115VAC 50/60 HZ; 0.9 Amps
- Output: One 24VAC individually fused
- 3 Amps 100 VA supply current at 70°F
- Fuse: 5 Amps
- NEMA 4X weatherproof enclosure
- Unit maintains camera synchronization
- Transformer110VAC/24VAC, 100VA
- Enclosure Dimensions203.2 x 152.4 x 114.3mm (8" x 6" x 4.5")
- Convenient screw and terminal and fuse access
- AC power LED indicator
- Includes transformer and spare fuses
- Lightweight molded fiberglass NEMA 4X weatherproof enclosure
- Uses easy to find automotive style fuses
