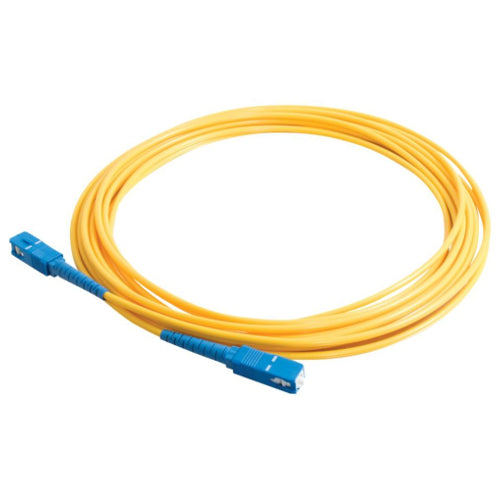

C2G 37129 Fiber Optic Simplex Patch Cable

Cost-effective solution that provides high bandwidth and transmission rates over longer distances. With SC to SC termination, this high quality fiber optic patch cable is specifically designed for gigabit ethernet applications. The patented injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs.

Key Features:

• Mfr. Part #: 37129
• SC Connector Dimensions: 7.3mm Height x 8.9mm Width x 55mm Depth
• Maximum Connector Loss: 0.50 dB
• Typical Connector Loss: 0.30 dB
• Typical Return Loss: -55 dB
• Buffer Material: PVC
• Buffer OD: 900 µm
• Jacket Material: PVC (OFNR riser-rated)
• Jacket OD: 2.8 mm
• Installation Tensile Load: 100 N (445 lbs)
• Long-Term Tensile Load: 50 N (222 lbs)
• Maximum Tensile Load: 100 N/cm
• Installation (Loaded) Minimum Bend Radius: 5.0cm (1.97in)
• Long-Term (Unloaded) Minimum Bend Radius: 3.0cm (1.2in)
• Crush Resistance: 750 N/cm
• Impact Resistance: 1,000 cycles
• Flex Resistance: 5,000 cycles
• Attenuation at 1550 nm: 0.25 dB/km
• Attenuation at 1310 nm: 0.35 dB/km
• Operating Temperature: -20°C to +70°C
