C2G
|
C2G02943

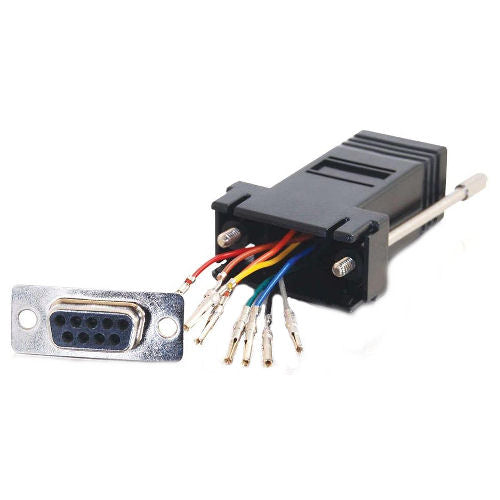

C2G 02943 RJ45 to DB9 Adapter (Black)
Use low cost flexible UTP Ethernet instead of bulky RS232 with this RJ45 to DB9 adapter. Screw together hoods with an RJ45 telephone jack on the first end and an RS232 connection on the second end. This data transfer adapter allows you to configure your own specific pinouts.
When running a serial connection over long distances, it's better to use an Ethernet cable to do so. This will help cut down on signal loss and interference.
Cost-effective solution to connect serial printers, terminals, modems, POS devices, and other serial equipment.
Key Features:
- Low cost solution for data transfer over long distances
- RJ45 to DB9 adapter to connect serial printers, terminals, modems, and more
- NOTE: This black modular adapter is an unconfigured kit
- Connector on First End: 1 x RJ-45 Female
- Connector on Second End: 1 x 9-pin DB-9 Female
- RJ45 Pin Outs: 1-Blue, 2-Orange, 3-Black, 4-Red, 5-Green, 6-Yellow, 7-Brown, 8-Gray
