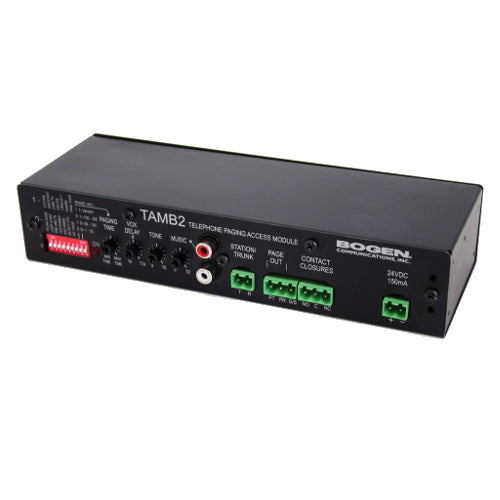

Bogen Telephone Access Module 2

Key Features:

• Loop start, ground start, and station port (90V ring up) compatibility
• 600-ohm output
• Pre-announce and confirmation tones (defeatable)
• Adjustable tone volume
• Works with paging only and two-way (talk back) systems
• Background music input with volume control
• Suppresses background music during paging
• Station access disconnect is dynamically controlled using a combination disconnect timer, and VOX disconnect timer or Calling Party Control (CPC) signal detection
• Station port maximum page times from 1- 200 seconds
• Disconnect VOX timer is adjustable from 1 to 11 seconds of silence
• VOX and default timers independently inhibitable
• Calling Party Control (CPC) signal from switch immediately disconnects station port
• 24V Talk Battery
• 1 Rack space unit height
• Flexible Mounting Configuration: wall, single unit rack, and dual side-by-side rack mount
• Easily accessible controls and switches
• Trunk Timer feature helps prevent system blockage
• 24V power supply required for all modes of operation (150mA min. capacity)
• 1 C-Form (N.O. and N.C.) contact pair available for operating external equipment
• Pluggable terminal strip connectors
• FCC Part 68 registered; ETL Listed
