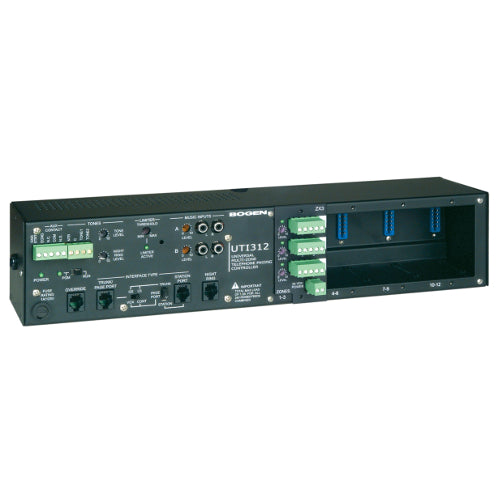

Bogen UTI312 Multi-Zone Page Controller

Key Features:

• Bogen multi-zone paging controller
• 3 to 12 Zone
• Provides multi-zone paging for one-way applications such as self-amplified speaker systems, with each output capable of providing audio for up to 150 self-amplified speakers
• Compatible with all standard analog port types
• Comes with a pre-installed ZX3 module for three zones of paging and is expandable up to 12 zones
• Offers up to 24 programmable paging zone groups as well as all-call, auto select, override, night ring, two tone triggers, and code calling zone groups
• Offers flexible dialing
• Telephone interfaces: loop start trunk, ground start trunk, station access (analog ring-up), page port contact closure activation, page port voice activation
• Simple 2-switchinterface setup
• Programmable activation of AUX contacts
• C-form contact per zone
• 24V DC,1A internal power supply
• Provides audio drivefor up to 150 one-way self-amplified speakers perzone
• Adjustable output limiter with thresholdcontrol and active indicator
• Two background music busses, selectable per zone
• Two high-impedance transformer isolated background music inputs
• Stereo combining inputs for background musicbusses
• All-Call paging zone group
• Auto Select paging zone group
• Override paging (using loop start trunk or page port contact closure activation) with zone group
• Night Ringer (90V and contact closure activation) with zone group
• Two Tone Triggers (tone and duration selectable, closure activated) with individual zone groups
• Select tone burst, chime, double chime, or slow whoop
• Code Calling with zone group
• 2 to 5 Digit dialing with flexible dialing plan for zone and zone group numbers
• Non-volatile memory for setup data (no backup battery required)
• Pre-Announce Tone
• Confirmation Tone
• Setup Tone to assist in volume setting
• Pluggable terminal strips
• Microcontroller-based operation
• DTMF programming
• DTMF Block to help suppress DTMF tones over paging system
• Programmable timers control page duration (station and trunk)
• Wall- or Rack-mountable
• 2 Year manufacturer's warranty
• (+20) Bogen power units
• Accessory modules BG-ZX3 sold separately
