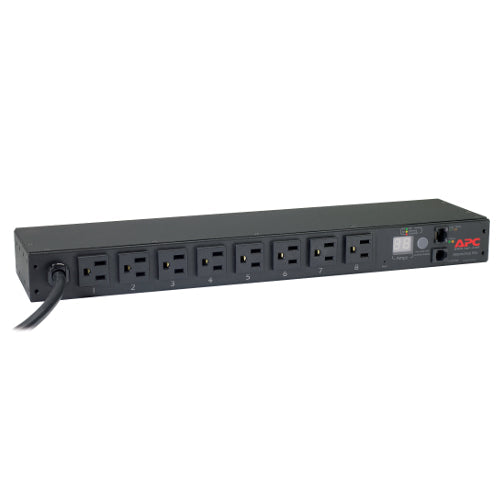

APC AP7800B Metered Rack Power Distribution Unit

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership.

Key Features:

• Mfr. Part #: AP7800B
• Local and web-based monitoring: Status available to customers both in the data center and remotely
• Local Current Monitoring Display: The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip
• Load indicator LED: Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits
• Alarm Thresholds: Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems
• Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip
• PDU Type: Metered
• Input Receptacles: NEMA 5-15P
• Output Receptacles: 8 x NEMA 5-15R
• Input Voltage: 120 V AC
• Output Voltage: 120 V AC
• Input Current: 15 A

Package Contents:

• Rack PDU, Metered, 1U, 15A, 100/120V, (8) 5-15
• Cord Retention Brackets
• Installation Guide
• Rack Mounting Brackets
• User Manual
