- Gigabit WDM Media Converter
- 1x 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 20 km
What This Product Does

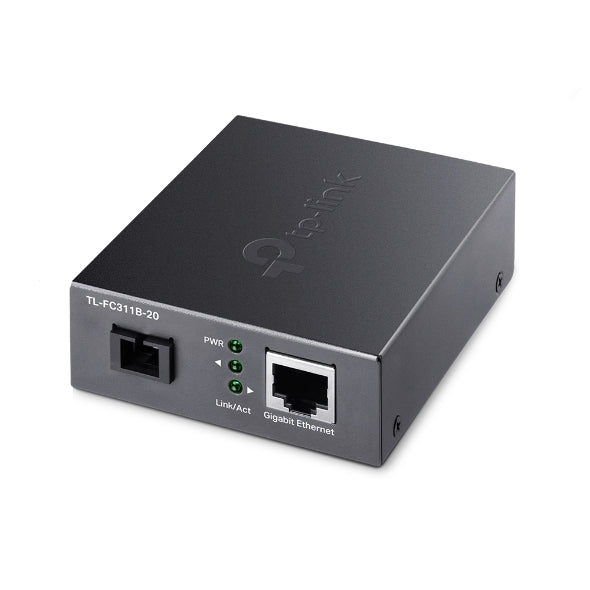

TL-FC311B-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
TL-FC311B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311B-20 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311B-20 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. TP-Link another media converter TL-FC311A-20 is one of the products that can cooperate with TL-FC311B-20.
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Links TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
Standards and Protocols
IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
0oC to 50oC (32oF to 122oF)
-40oC to 70oC (-40oF to 158oF)
10% to 90% RH non-condensing
5% to 90% RH non-condensing
1x Gigabit SC Fiber Port
1x 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
UTP category 5, 5e cable (maximum 100m)
External Power Adapter: 5 V/0.6 A
1310 nm TX
1550 nm RX
MEDIA CONVERTER AND MODULE
9/125 micrometer single-mode fiber
Media Converter TL-FC311B-20
Item Dimension (L"xW"xH")
9 x 7 x 3
