10/100Mbps WDM Media Converter with 1-Port PoE
- Converts the data between fiber (optical signal) and copper (electric signal).
- Extends fiber distance up to 20 km.
- The 802.3af PoE output makes remote camera deployment easier and more convenient.
- WDM (Wave Division Multiplexing) technology enables to transmit and receive data over one single fiber strand instead of two.
- Wide operating temperature (0–50 ℃) with reliability.
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode.
What This Product Does
TL-FC111PB-20 is a 10/100 Mbps media converter with 802.3af PoE output, providing 1× 10/100 Mbps PoE RJ45 port and 1× 100 Mbps SC fiber port, which can convert between electrical and optical signals. With up to 20 km fiber transmission distance and 802.3af PoE output, the media converter is designed to address the needs of flexible long-range surveillance deployment with optical fibers. It provides an economical path towards extending the distance of an existing network.
How This Product Works
TL-FC111PB-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC111PB-20 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC111PB-20 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. TP-Link another media converter TL-FC111A-20 is one of the products that can cooperate with TL-FC111PB-20.
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
Standards and Protocols
IEEE802.3, IEEE802.3i, IEEE802.3u
0-50 oC (32-122 oF)
-40-70 oC (-40-158 oF)
10-90% RH non-condensing
5-90% RH non-condensing
1x 10/100 Mbps PoE RJ45 port (Auto MDI/MDIX)
1x 100 Mbps SC fiber port
100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (is less than or equal to 100 m)
48 V/0.5 A
PWR, Link/Act, PoE
1310 nm TX, 1550 nm RX
MEDIA CONVERTER and MODULE
9/125 micrometer single-mode fber (is less than or equal to 20 km)

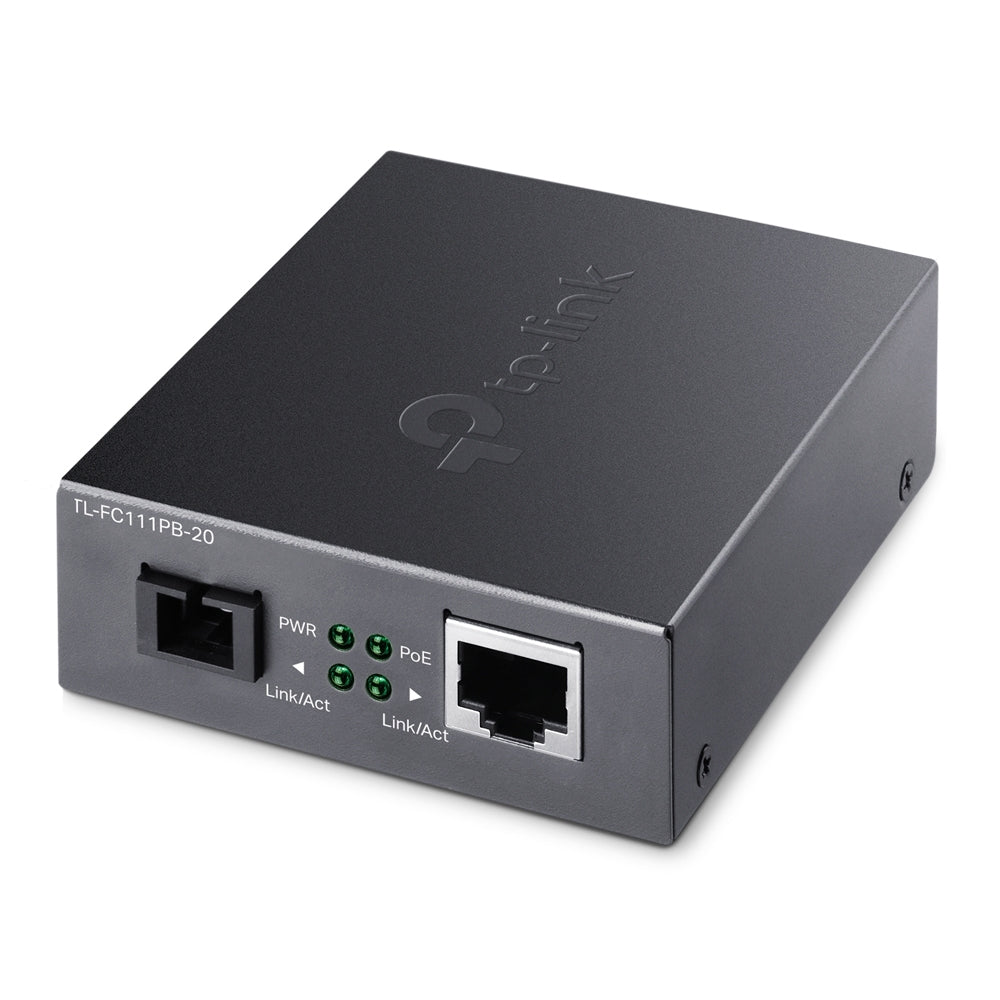

Media Converter TL-FC111PB-20
Item Dimension (L"xW"xH")
9 x 7 x 3
