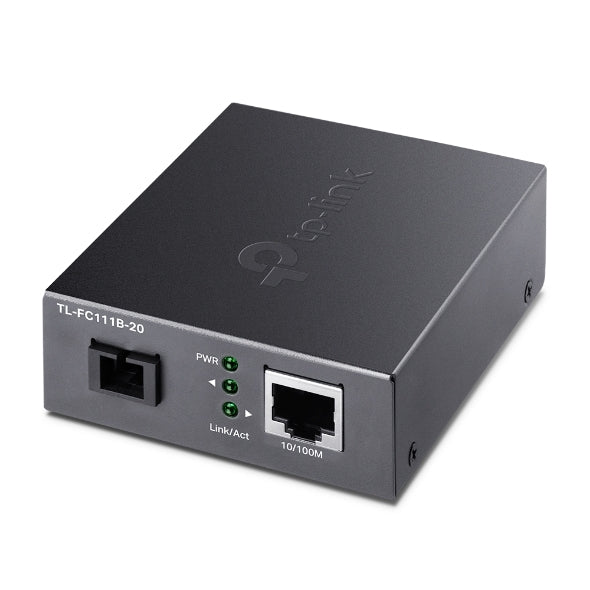

TP-Link TL-FC111B-20 10/100 Mbps WDM Media Converter (New)

Condition: New
Warranty: 3 Month Warranty

Sale price$28.00

We exclusively offer FedEx Ground Shipping for all your purchases with We promise speedy delivery, offering FedEx shipping, and getting your orders out the door as fast as possible (usually same day). We primarily ship using FedEx Ground service, however we reserve the right to ship any other standard (or other) method. Business-day standard shipping orders placed by 2:00 pm PST usually ship the same day.

Covid-19 & Returns: Due to Covid-19, certain manufacturers we carry are no longer accepting returns on their products until further notice and they are only offering replacements if an item is not working. Please feel free to contact us via phone or email to confirm the return policy on any item you might be interested in before purchasing on our website.


10/100 Mbps WDM Media Converter

  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
  • 9/125 micrometer SMF (Single-Mode Fiber)
  • Bidirectional WDM communication on a single fiber
  • Ranges up to 20km (12.4 miles)
  • Work with TL-FC111B-20 as a pair

What This Product Does
TL-FC111B-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

How This Product Works
TL-FC111B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111B-20 transmits data at 1310nm wavelength and receives data at 1550nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at a wavelength 1310nm and sending data at wavelength 1550nm.


Standards and Protocols
IEEE802.3, IEEE802.3i, IEEE802.3u

Operating Temperature
0oC to 50oC (32oF to 122 oF)
Storage Temperature
-40oC to 70oC (-40oF to 158oF)
Operating Humidity
10% to 90% RH non-condensing
Storage Humidity
5% to 90% RH non-condensing

1x 100 Mbps SC Fiber Port
1x 10/100 Mbps RJ45 Port (Auto MDI/MDIX)
Network Media
100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (less than or equal 100 m)
Power Supply
External Power Adapter: 5 V/0.6 A
PWR, Link/Act
Wave Length
1310 nm TX, 1550 nm RX

Standards and Protocols
IEEE 802.3, IEEE 802.3i, IEEE802.3u
Basic Function
Auto-negotiation of half-duplex / full-duplex transfer mode
Full-duplex flow control (IEEE 802.3x)
Half-duplex flow control (Backpressure)
Extends fiber distance up to 20km (12.4 miles)
1x 100M single SC/UPC port
1x 10/100M RJ45 port (Auto MDI/MDIX)
1310 nm
1550 nm
Network Media 10BASE-T
UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Omega STP (maximum 100m)
Network Media 100BASE-T
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Omega STP (maximum 100m)
Network Media 100BASE-FX
Single-mode fiber
LED Indicators
PWR, Link/Act
Power Supply
External Power Adapter: 5 V/0.6 A
Safety and Emission
Fiber Type
9/125 micrometer single-mode fber (less than or equal 20 km)
Operating Temperature: 0oC-50oC (32oF-122oF)
Storage Temperature: -40oC-70oC (-40oF-158oF)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing

Package Contents
Media Converter TL-FC111B-20
Power Adapter
Installation Guide

Item Dimension (L"xW"xH")
9 x 7 x 3

2 lbs
