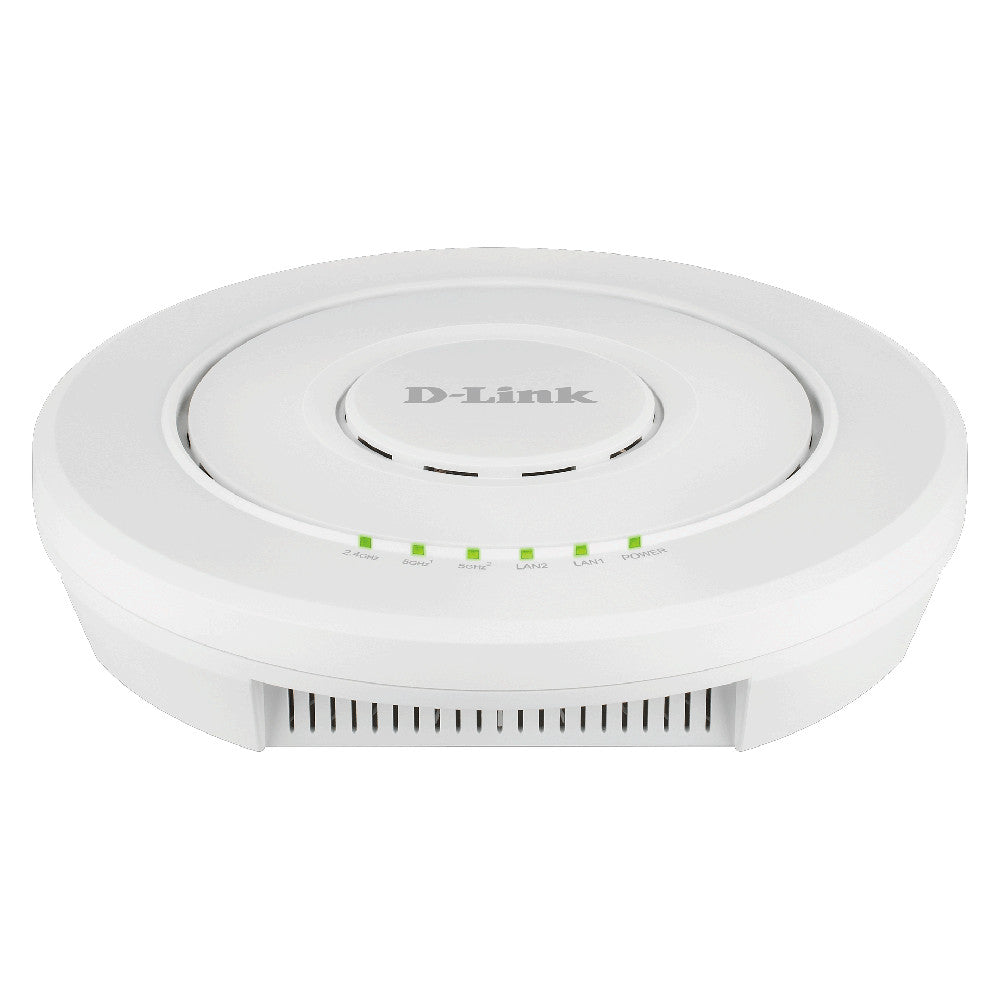

The Wireless AC2200 Wave 2 Tri-Band Unified Access Point is specially designed for small to medium businesses or enterprises, providing unparalleled bandwidth and flexibility for administrators looking to deploy a medium to large scale Wi-Fi network. It can operate as a standalone access point as well as be centrally managed by D-Links Unified Wireless Controllers. The DWL-7620AP can be ceiling mounted or wall mounted to provide the best wireless coverage. For additional flexibility, it comes with integrated Power over Ethernet (PoE) support, allowing the access point to be installed in areas where power outlets are not readily available.
Greater Speed and Connectivity
The DWL-7620AP leverages the full potential of 802.11ac Wave 2 to provide unparalleled connectivity with ultra-high combined data rates. It delivers combined wireless speeds of up to 2,200 Mbps3 over 3 wireless bands and supports wired link aggregation2. This allows two Gigabit Ethernet ports to be linked together and act as a single port to double the available bandwidth and maximise the overall throughput of the access point.
With support for MU-MIMO (Multi-User Multiple Input Multiple Output), the DWL-7620AP simultaneously communicate with multiple clients using multiple antennas. This allows the access point to utilise the spectrum more efficiently and significantly increase the network capacity. The 2 x 2 MU-MIMO takes full advantage of all streams to serve more wireless clients to dramatically improve wireless performance.
IEEE 802.11b/g/n 2.4 GHz wireless
IEEE 802.11/a/n/ac Wave 2 5 GHz wireless
2 x 2
2.4 GHz - Up to 400 Mbps
5 GHz (1) - Up to 867 Mbps
5 GHz (2) - Up to 867 Mbps
Internal omnidirectional antennas
2.4 GHz: 3 dBi
5 GHz: 4 dBi
2400 to 2483.5 MHz
5150 to 5850 MHz
1 to 13 channels for 2.4 GHz band (per country code)
36 to 165 channels for 5 GHz band (per country code)
2 x 10/100/1000BASE-T LAN port
Auto Channel selection
802.1p Quality of Service (QoS)
Wireless Multimedia (WMM)
Wireless Distribution System (WDS)
IEEE 802.11k Fast Roaming
Managed mode - Centrally managed by D-Link Wireless Controller
Web-based User Interface (Web UI)
Command Line Interface (CLI)
Up to 32 SSIDs, 16 per radio
WPA/WPA2 Personal/ Enterprise
Detection and Prevention
Rogue and Valid AP Classification
MAC Address Filtering
External power adapter: 12 V DC 2.5 A (not included)
Supports 802.3at PoE PD on LAN 1 Port
Power over Ethernet
Maximum Power Consumption
Bottom cover - plastic
Top cover - plastic
Operating: 0 to 40 oC (32 to 104 oF)
Storage: -20 to 65 oC (-4 to 149 oF)
Operating: 10% to 90% non-condensing
Storage: 5% to 95% non-condensing
CE, FCC, IC, cUL+UL, CB, RCM, NCC, BSMI, UL2043
EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60601-1-2 (Medical electrical equipment), EN301489-1, EN301489-17, EN300328, EN301893
Item Dimension (L"xW"xH")
12 x 12 x 4
